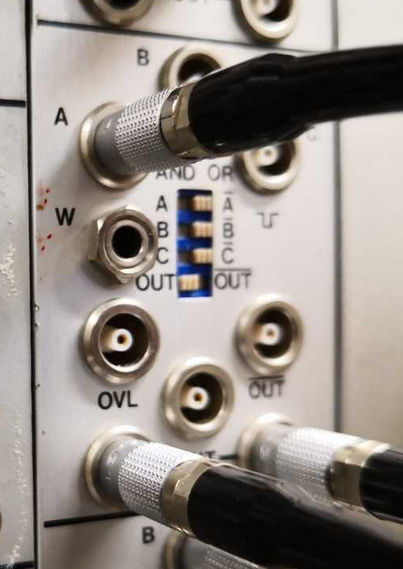

I changed the laser step complete cabling from a quad coinc (see attached picture) to a Logic Fan In / Fan out (same as laser scan complete).
The "detour" through the quad coinc yielded to a very short laser step complete signal of ~500ns...
Due to the change it is now ~15µs long and has the same length as the laser scan complete signal (~15µs). |
