Dielectronic recombination-assisted laser spectroscopy |
Not logged in |
|
|
Message ID: 28
Entry time: Tue May 10 15:26:35 2022
|
Author: |
Rodolfo, Max |
Category: |
Laser |
Subject: |
Laser stabilisation running |
|
|
It is now possible to stabilize and move the laser with both stages.

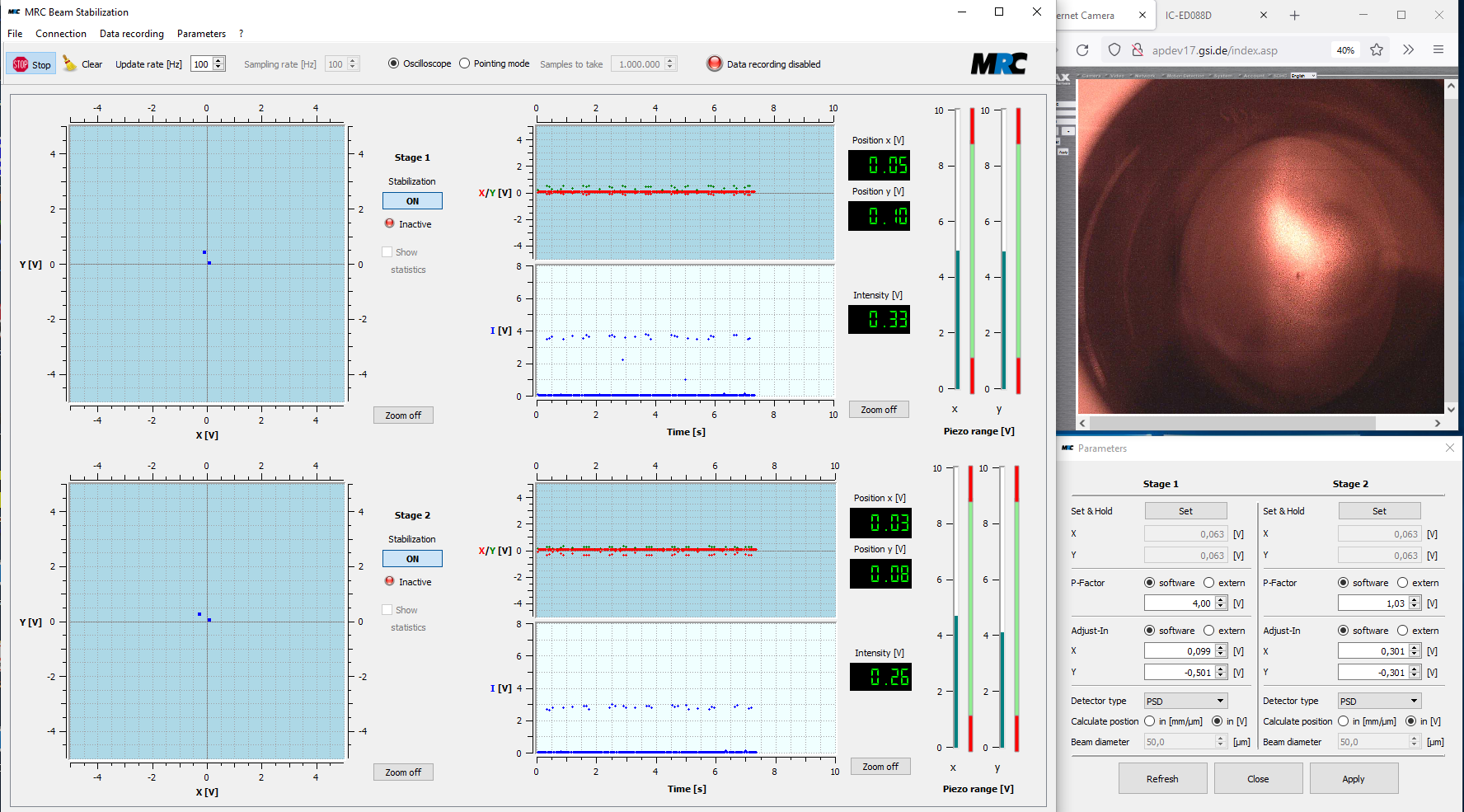

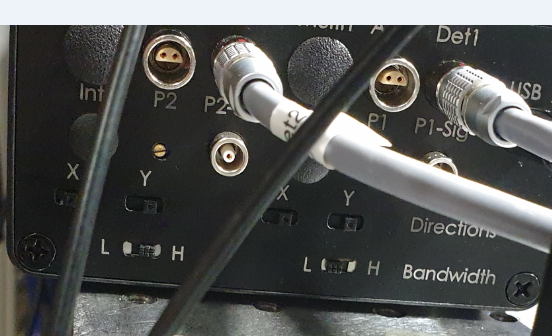

The software and hardware settings are attached.
For synchronizing with the laser pulse we use following frequency generator settings:
period: 200us
high: 5V
low: 0V
duty: 50%
The frequency generator is triggered with the external Q-switch trigger signal, that is in coincidence with the ESR HF.
To use the stabilization one has to use the external and NOT the q-switch mode of the laser. |
|
|
|
|
