Message ID: 3     Entry time: Mon May 5 11:29:28 2025
Author: Rodolfo, Simon, Nils, Volker
Category: Detectors
Subject: PMTs
These are the PMTs installed at the optical detection region:

Label Hersteller Model S.N. Sensitivity Operation voltage
Cu-Mirror Hamamatsu R1017 (sel) NA2313 Infrared -1300 V
PMT Nord ET Enterprises 9422 1042 UV -1500 V
PMT Middle ET Enterprises 9422A 1001 UV -1700 V

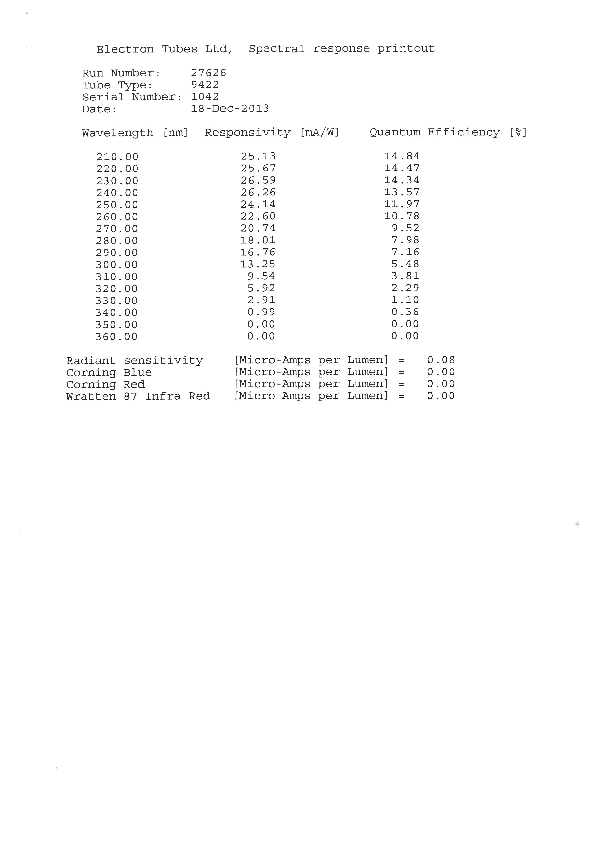

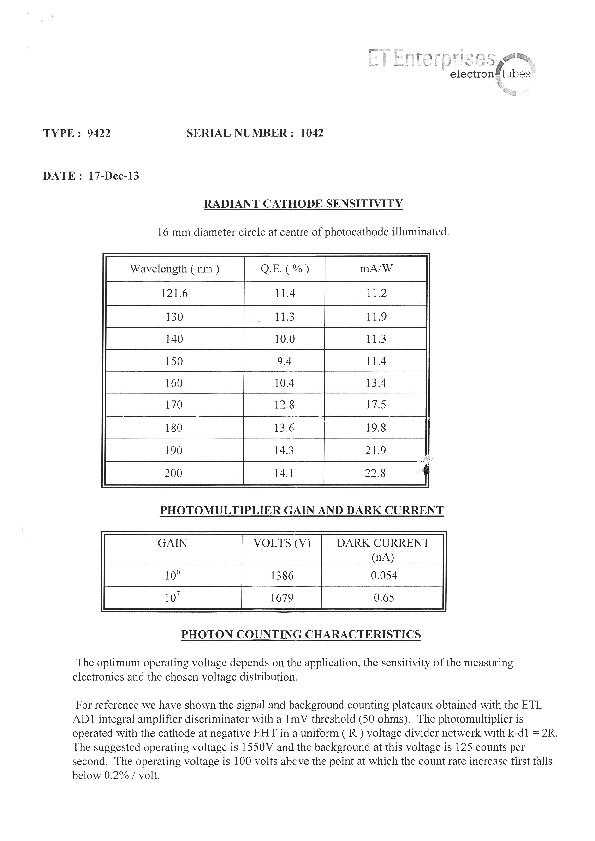

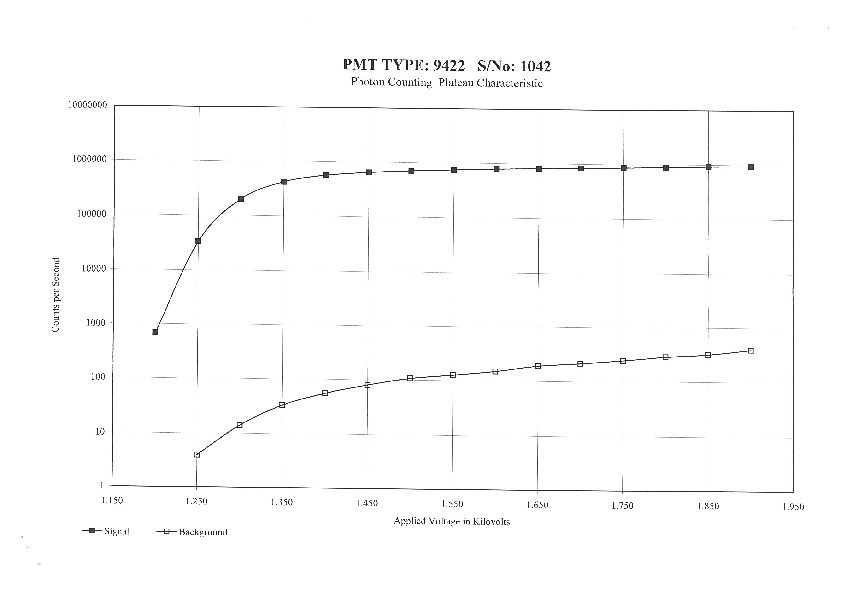

Attachment 1: SolarBlind_ET_9422_SN1042.pdf  1.229 MB  Uploaded Mon May 5 14:51:32 2025  | Hide | Hide all
SolarBlind_ET_9422_SN1042.pdf SolarBlind_ET_9422_SN1042.pdf SolarBlind_ET_9422_SN1042.pdf SolarBlind_ET_9422_SN1042.pdf
Attachment 2: ThornEmi_PMT9422A_SN1001_(1987).pdf  2.346 MB  Uploaded Mon May 5 14:52:25 2025  | Hide | Hide all
ThornEmi_PMT9422A_SN1001_(1987).pdf ThornEmi_PMT9422A_SN1001_(1987).pdf ThornEmi_PMT9422A_SN1001_(1987).pdf

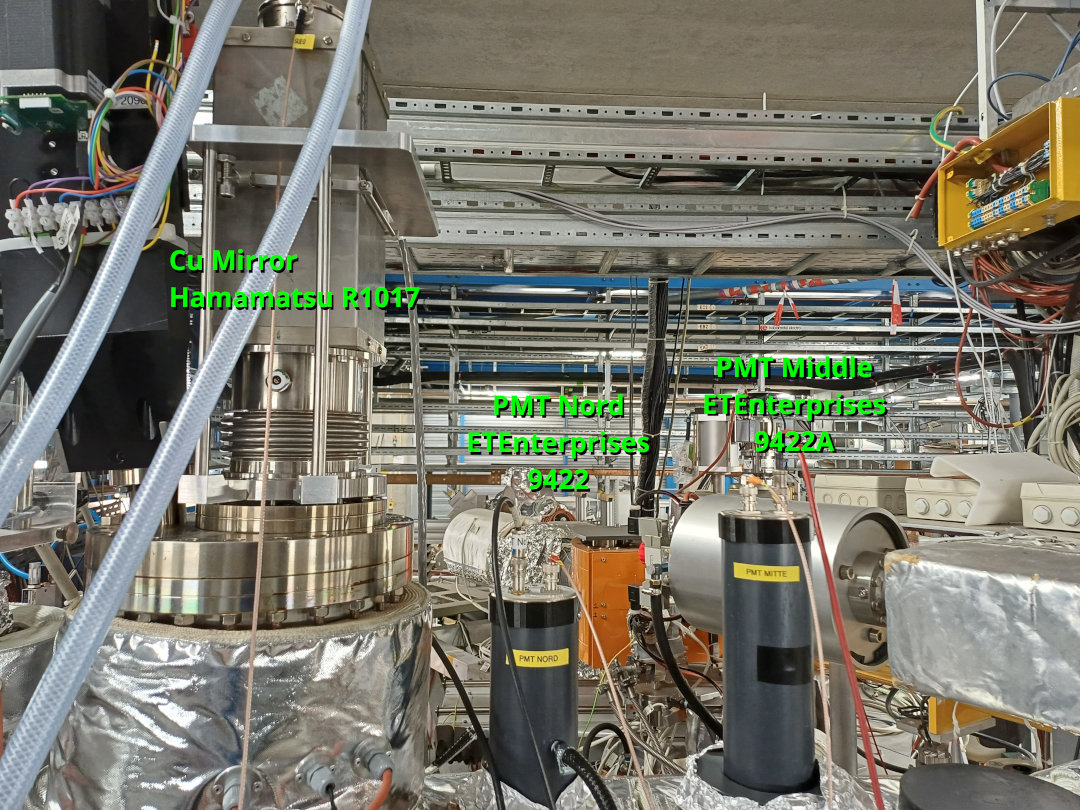

Attachment 3: PMT_Arrangement_Libelle2025.jpg  291 kB  Uploaded Thu May 8 16:12:02 2025  | Hide | Hide all

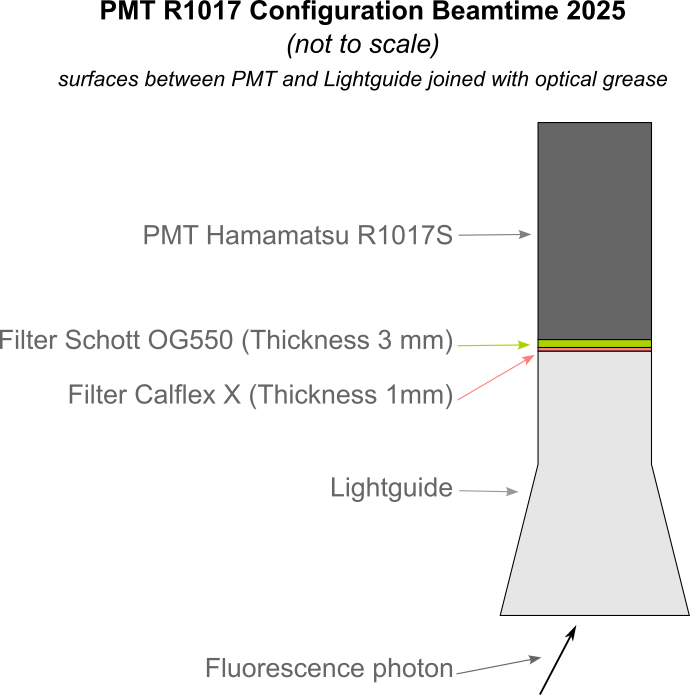

Attachment 4: PMT_R1017_Configuration_Beamtime2025.png  62 kB  Uploaded Fri May 9 16:01:08 2025  | Hide | Hide all
