Message ID: 5     Entry time: Mon May 5 21:13:29 2025 Author: Rodolfo  Category: Laser  Subject: Collimation of laser beam

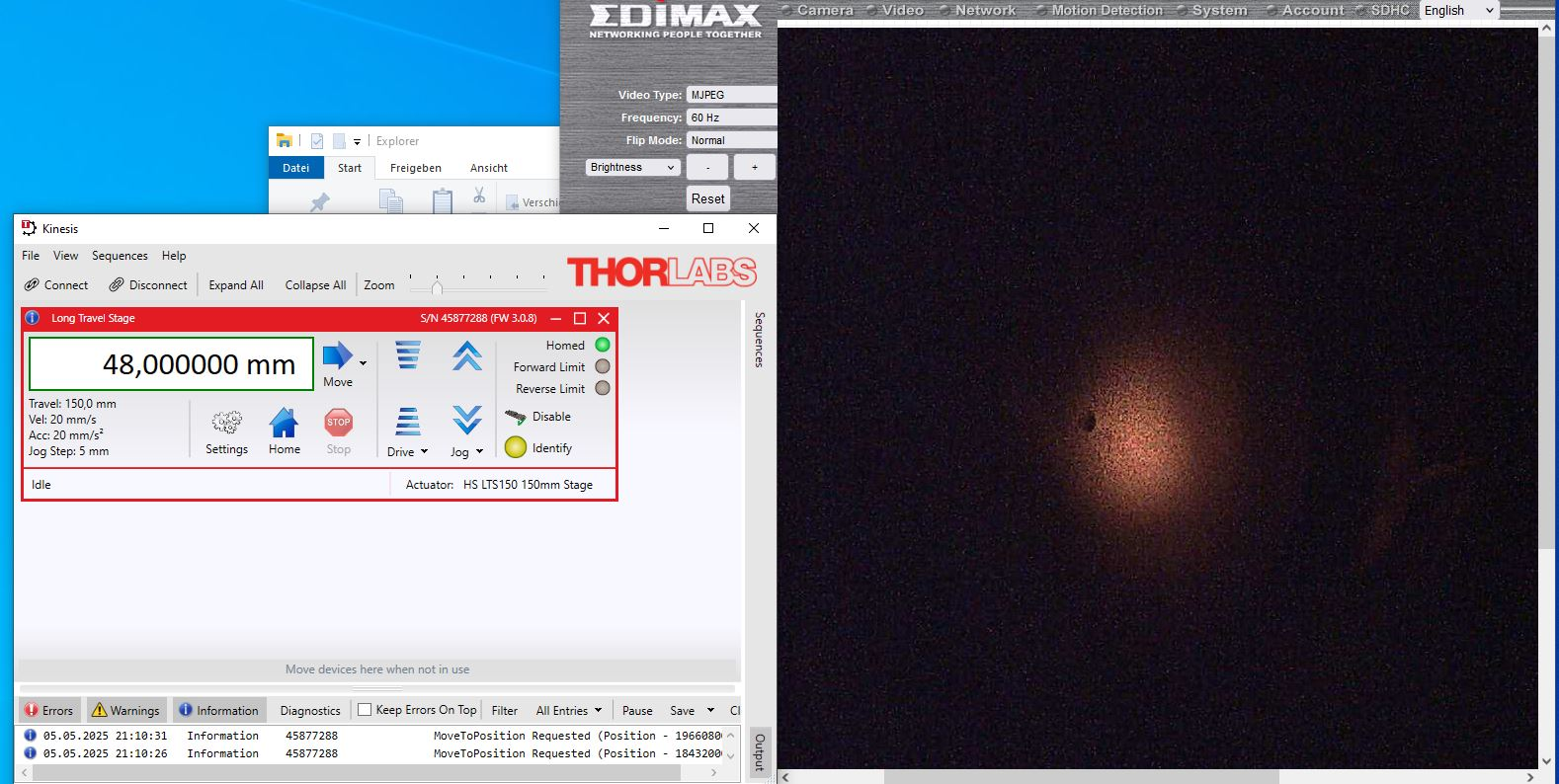

Here some parameters for the collimation of the laser beam Periscope: - Planconcav -500 mm - Planconvex +1000 mm Distance between both lenses: 504 mm. Long Travel Stage @ 48,0 mm The screnshot shows the laser spot at the screen "SO-Arc".

Attachment 1: Cobra593nm_Laserbeam_Collimation_2025-05-05.JPG  183 kB  Uploaded Mon May 5 22:18:22 2025  | Hide | Hide all
