Message ID: 6     Entry time: Tue May 6 15:35:12 2025 Author: Rodolfo, Konstantin  Category: Laser  Subject: MRC Settings

Following settings (P-Factor, Directions and Bandwidth) are used for the laser beam stabilization. Full energy (ca. 150 mJ @ 593 nm). The triggers for the MRC are generated by AFG3102C. The settings (the same for both CH1 and CH2) are saved under "Abrufen / Setup2"

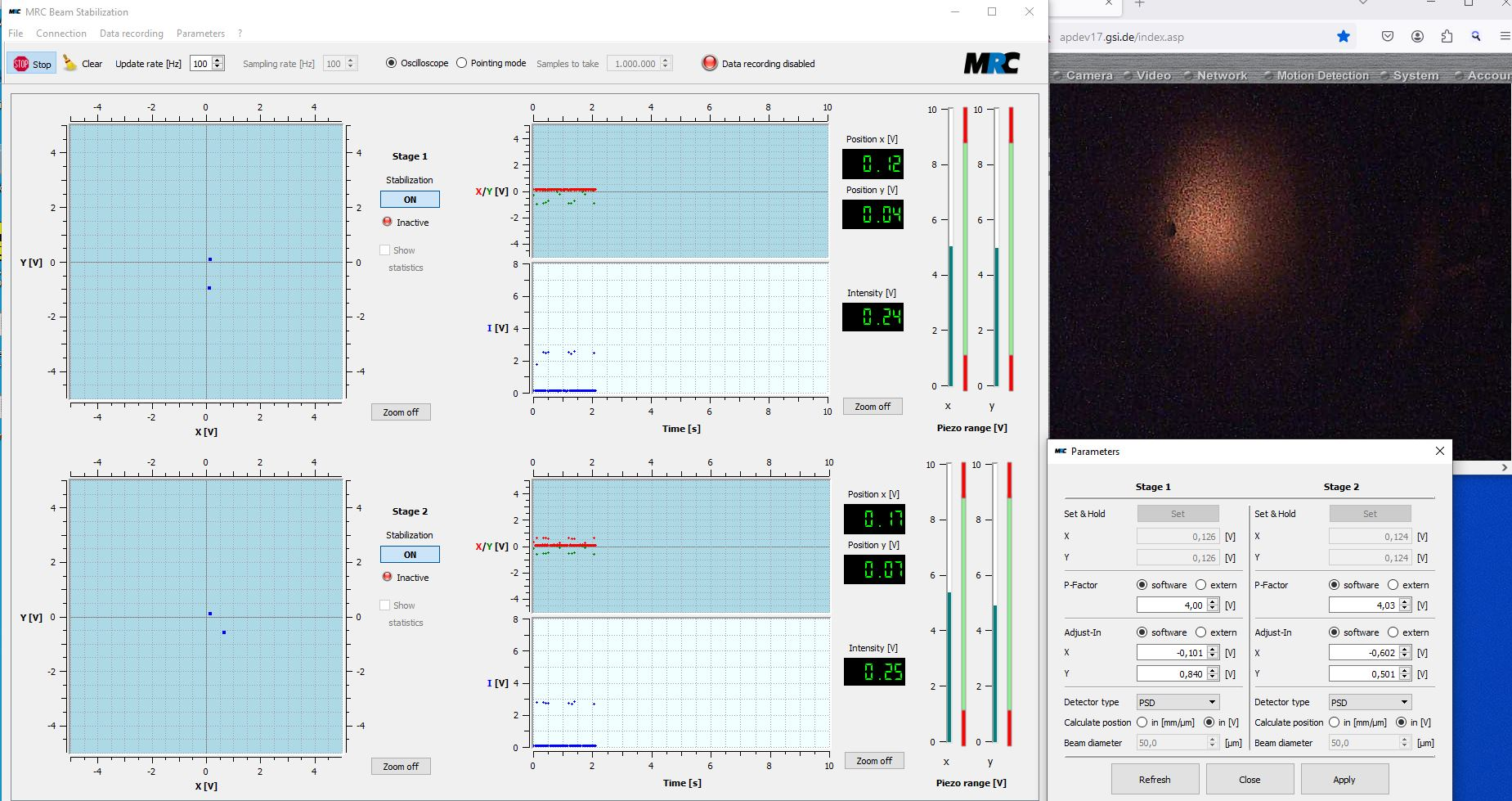

Attachment 1: MRC_Settings_Cobra593_VolleLeistung_2025-05-06.JPG  285 kB  Uploaded Tue May 6 16:40:31 2025  | Hide | Hide all

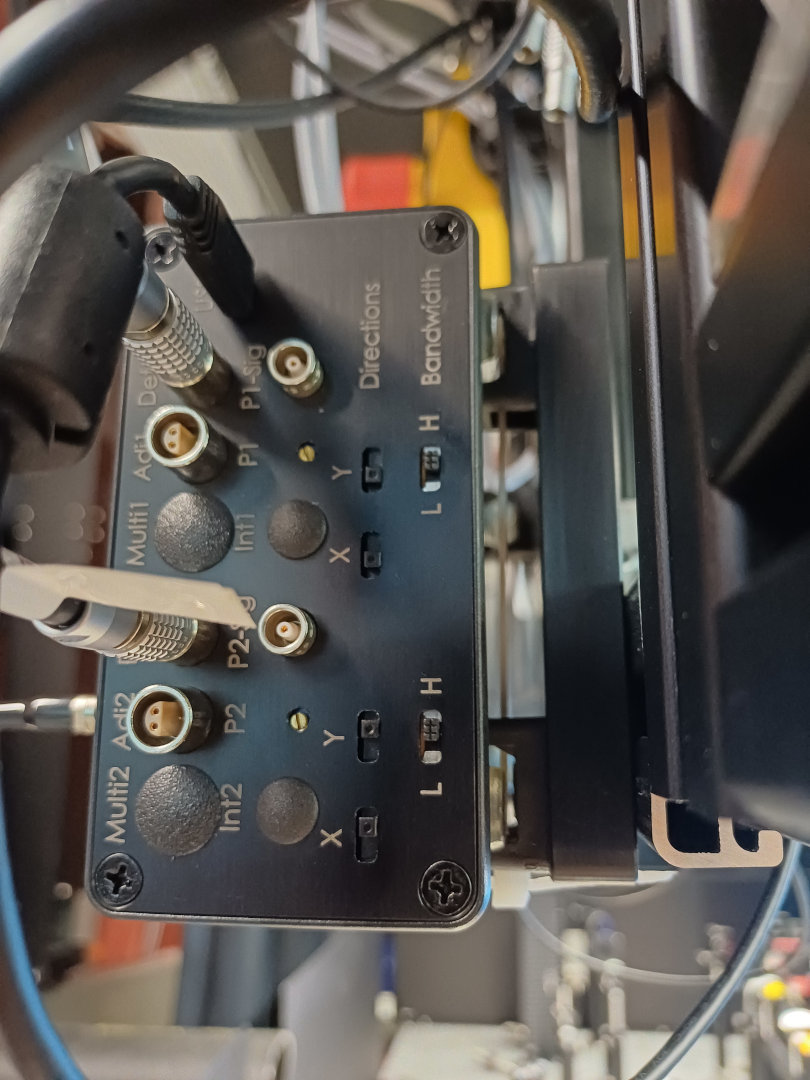

Attachment 2: MRC_Controller_Settings_2025-05-06.jpg  139 kB  Uploaded Tue May 6 19:13:39 2025  | Hide | Hide all

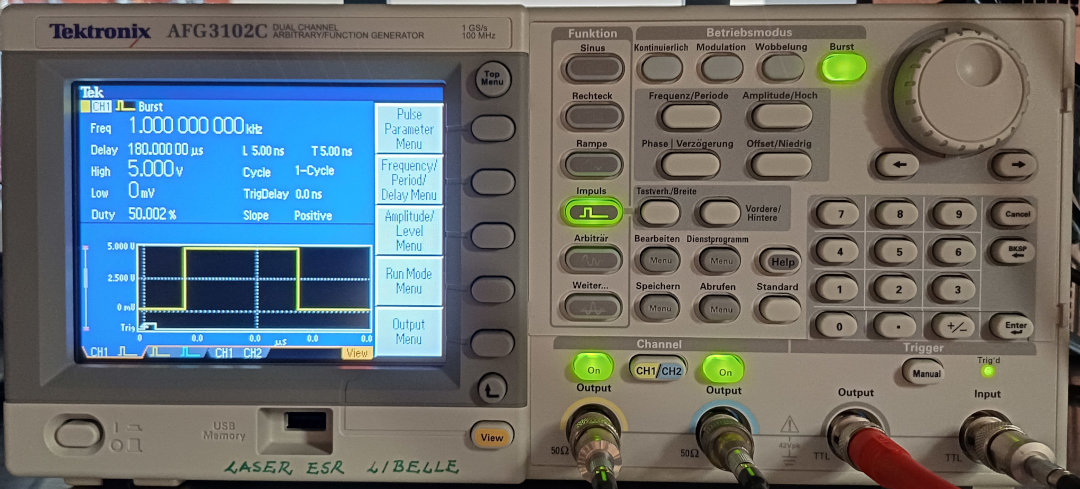

Attachment 3: AFG3202C_Settings.jpg  132 kB  Uploaded Thu May 8 15:46:46 2025  | Hide | Hide all
