Message ID: 8     Entry time: Wed May 7 17:29:19 2025 Author: Rodolfo, Simon  Category: DAQ  Subject: Fast Photodiodes

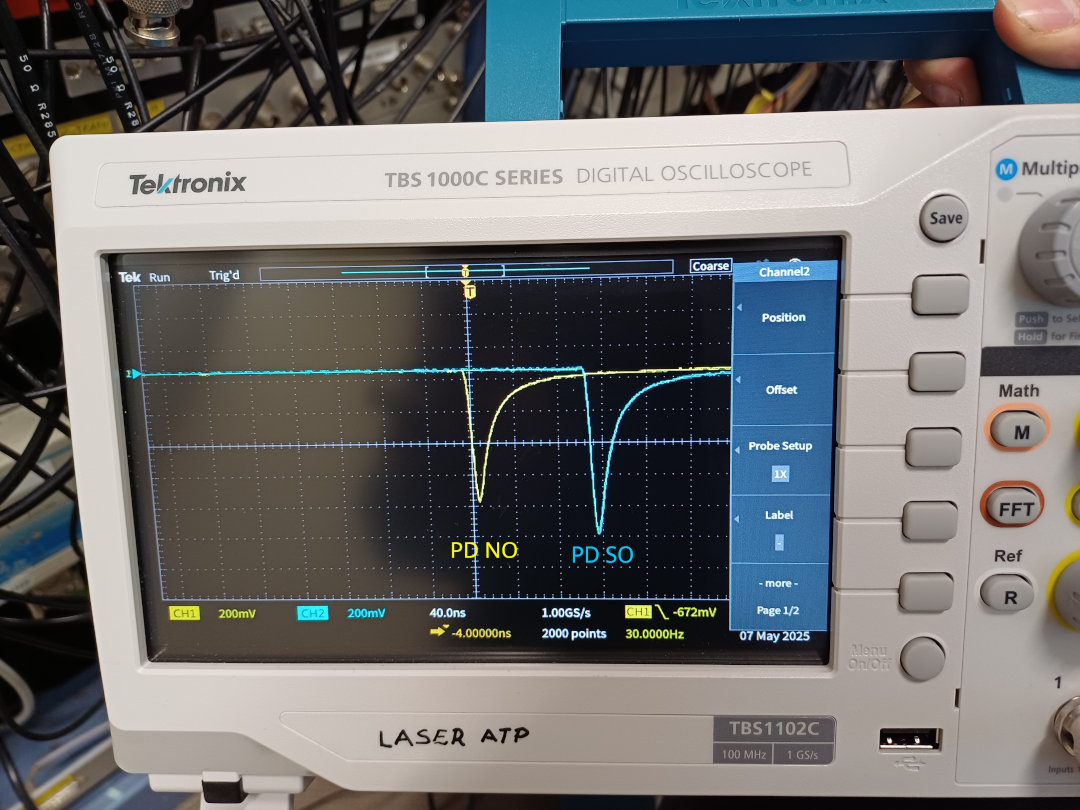

Signal for the fast photodiodes. The laser beam enters at the Nord-Ost (NO) Arc and leaves at the Süd-Ost (SO) Arc. The photodiodes themself are located inside the laser towers.

Attachment 1: FastPD-Signals_Messhütte_2025-05-07.jpg  169 kB  Uploaded Wed May 7 18:33:40 2025  | Hide | Hide all
