motor | ion beam position (mm) from outside | ion beam position (mm) from inside
| |
GECEDS1VU | -0,5 | -
| |
GECEDS1HA | -13,0 | -4,5
| |
GECEDS2VU | 1,0 | -
| |
GECEDS2HA | -10,5 | -0,5
|
Note: To move GECEDS1VU the corresponding horizontal drive (GECEDS1HA) has to be at -4,0 mm.
Note: To move GECEDS2VU the corresponding horizontal drive (GECEDS2HA) has to be at 2,0 mm.

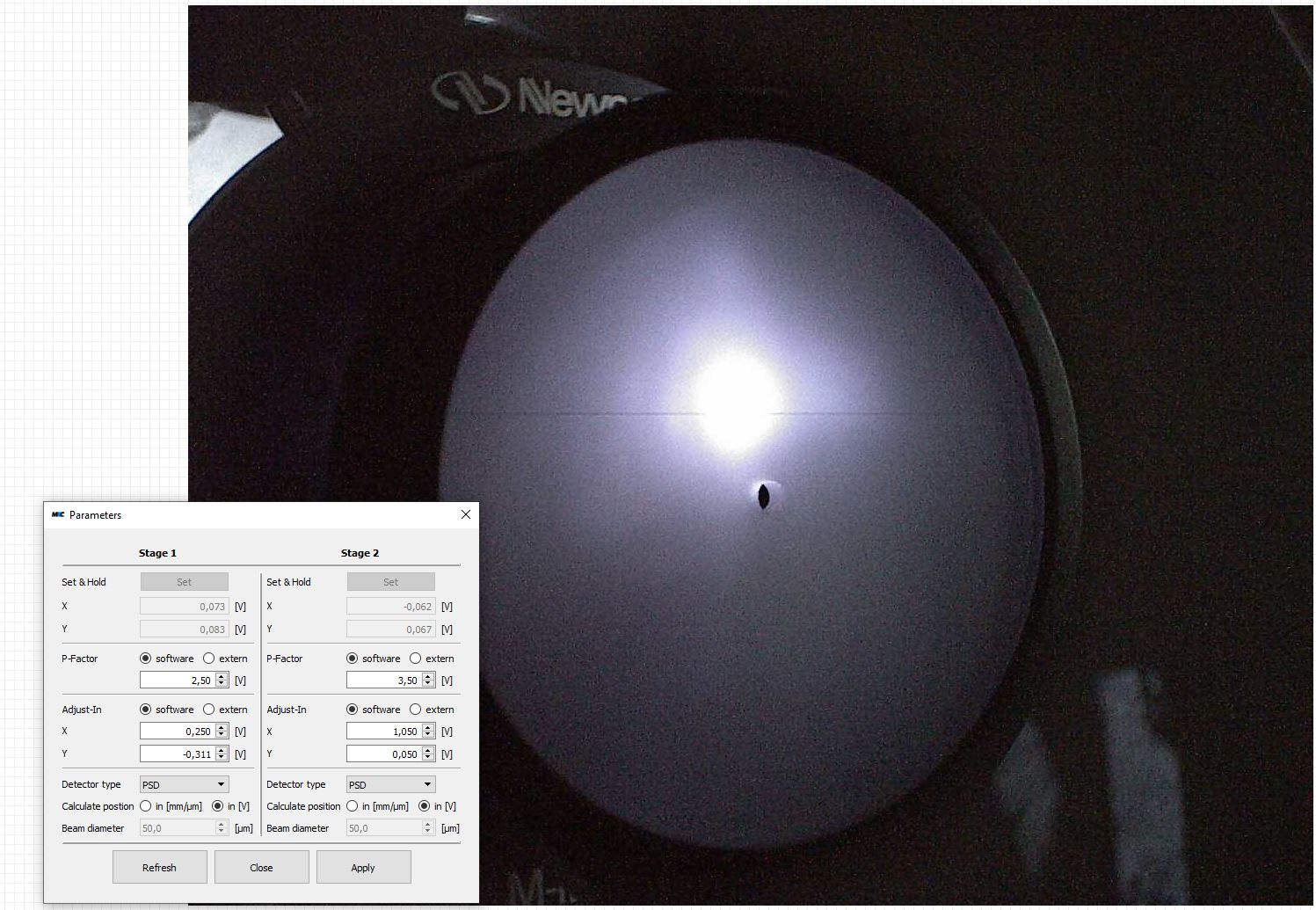

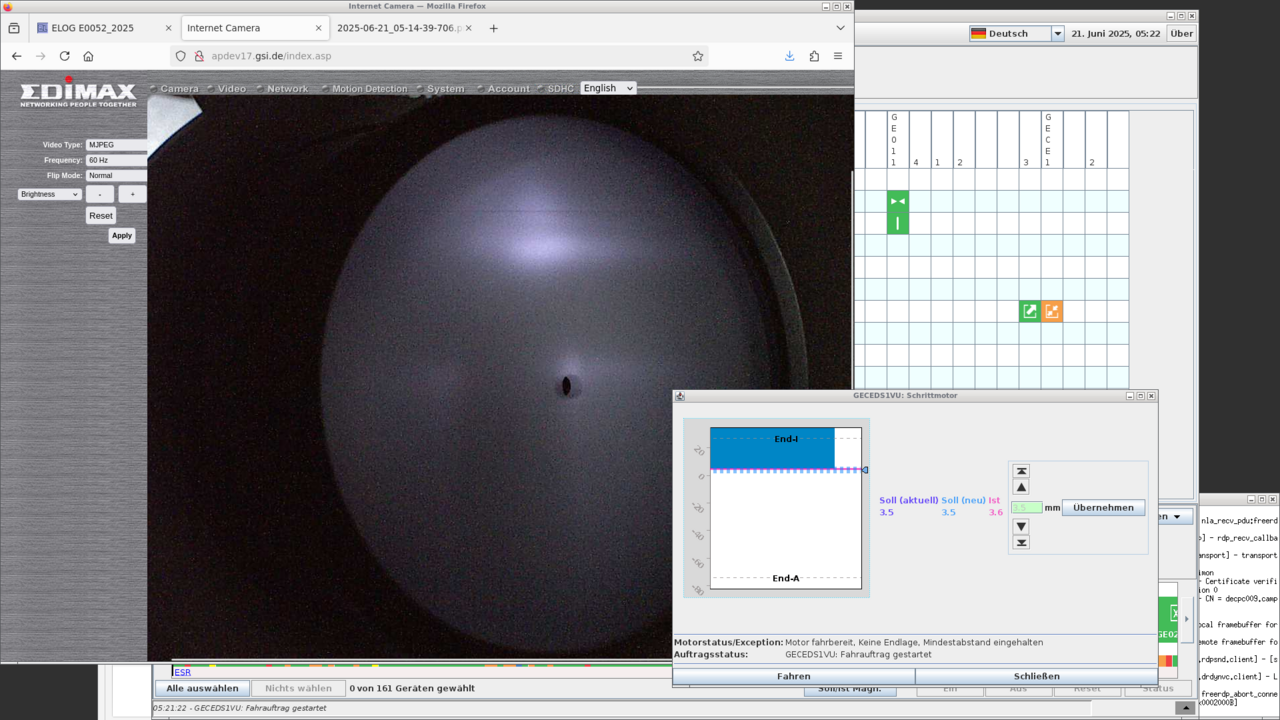

GECEDS1VU (from E.outside -74.0): -1,0 (start scraping)
-0,5 (ion beam disappear)
GECEDS1VU-End.I (24,8)

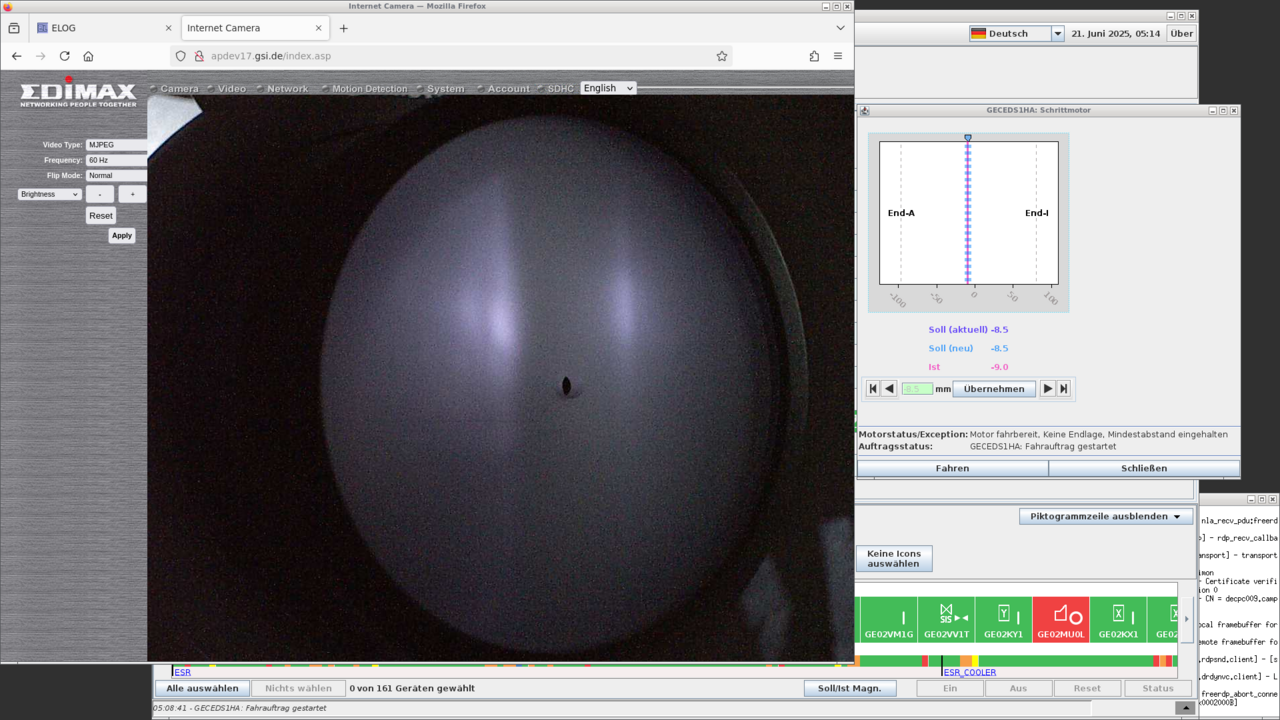

GECEDS1HA (from E.outside -96,2): -13,0 (ion beam disappear)

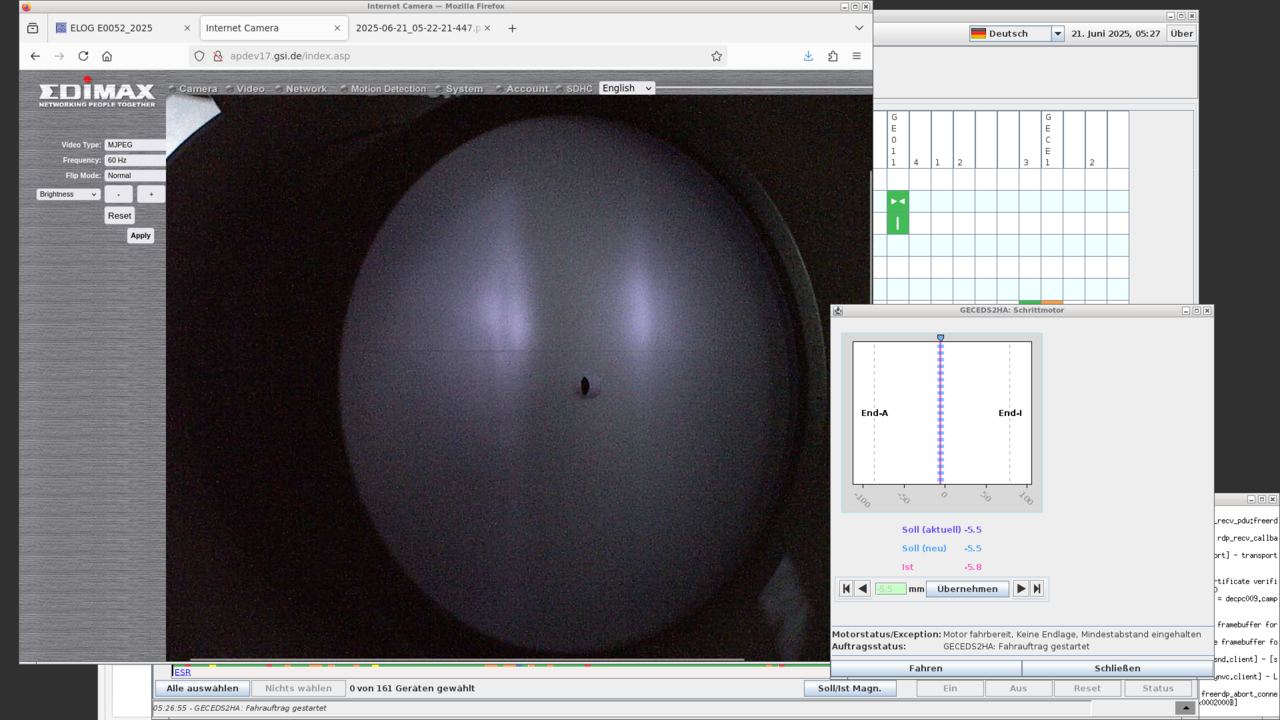

GECEDS1HA (from E.inside -79,5): -4,5 (ion beam disappear)
GECEDS1HA (-4,0): no interlock for GECEDS1VU => drive out to End-A

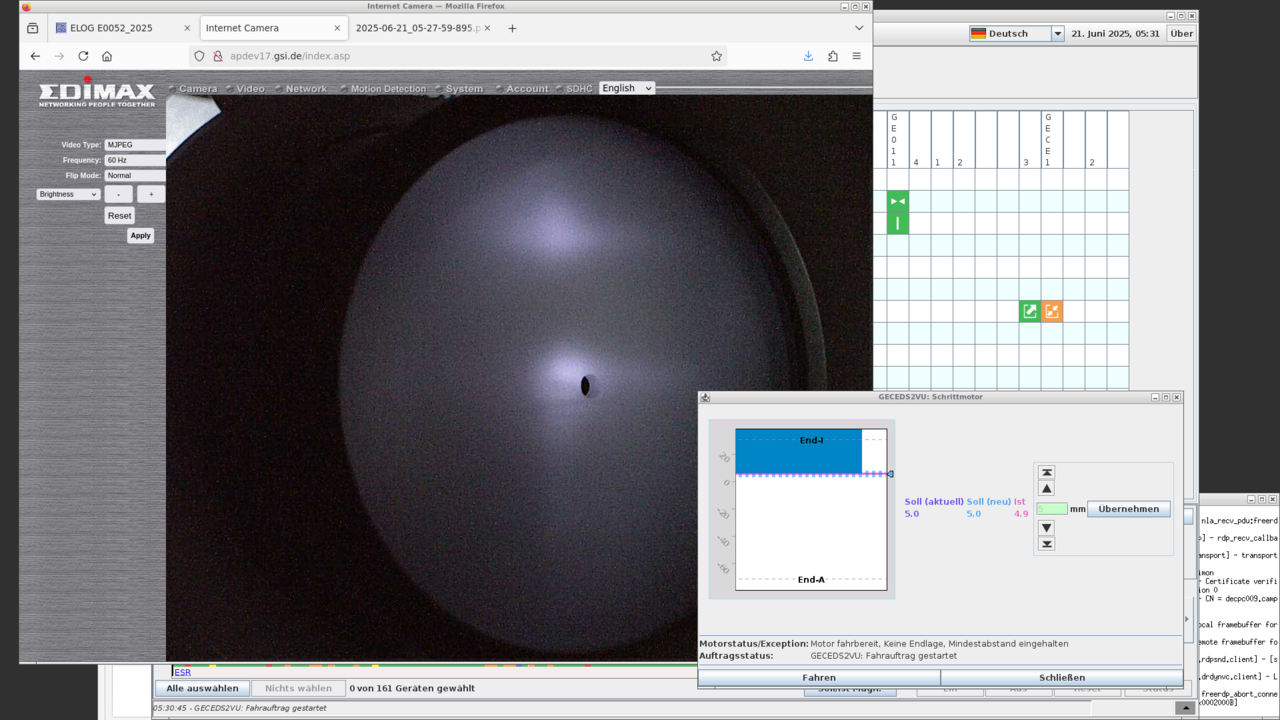

GECEDS2VU (from E.outside -70.7): 1,0 (ion beam disappear)
GECEDS1VU-End.I (30,4)
GECEDS2HA (from E.outside -86,4): -10,5 (ion beam disappear)
GECEDS2HA (from E.inside 78,6): -0,5(ion beam disappear) |
