  Bound beta decay experiment on Tl-205  Not logged in ELOG logo
Message ID: 2     Entry time: Mon Dec 3 15:06:04 2018
Author: Chen, Sidhu
Category: DAQ
Subject: Test of two preamplifier.
Description:

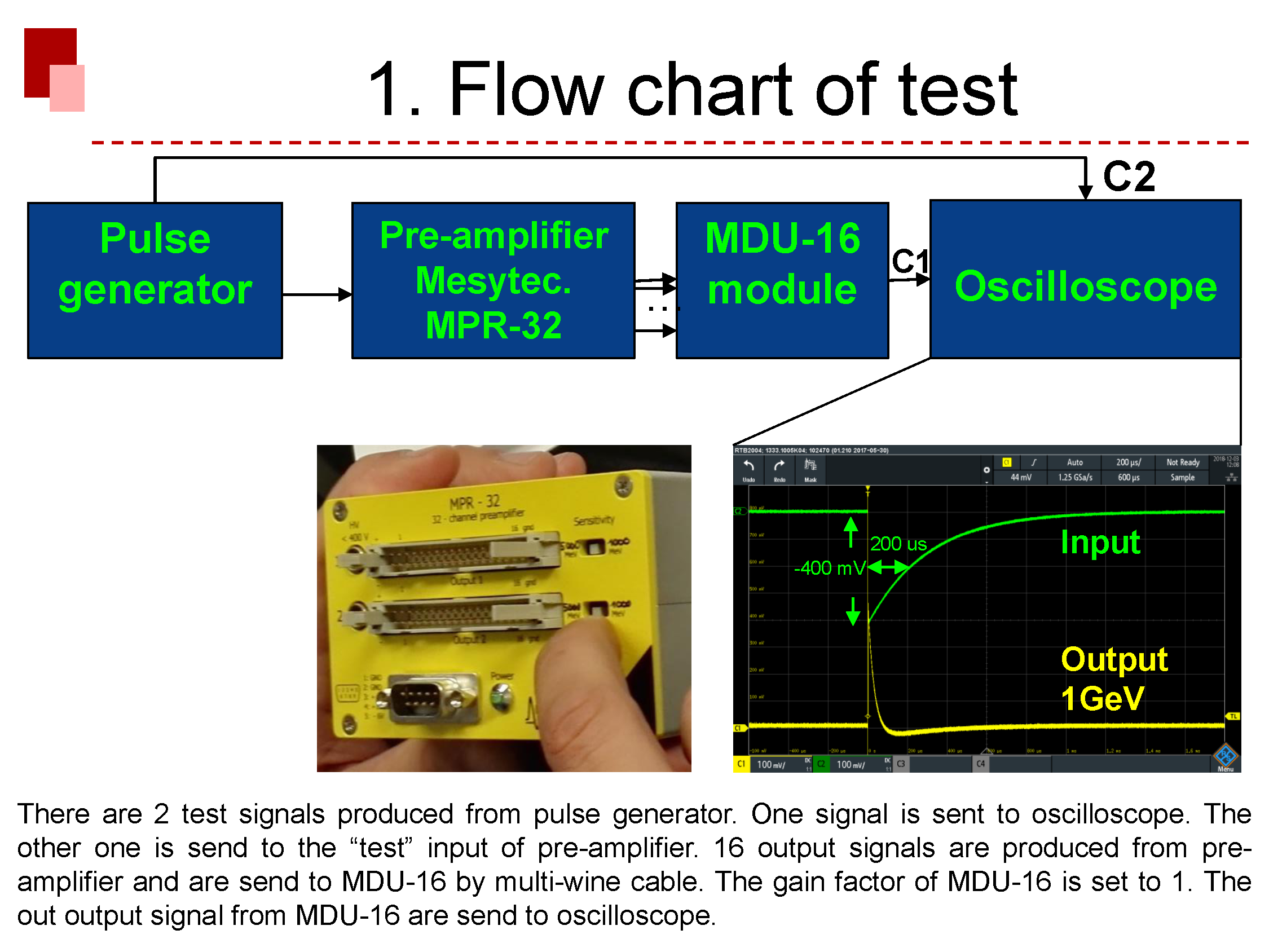

We have two pre-amplifiers:

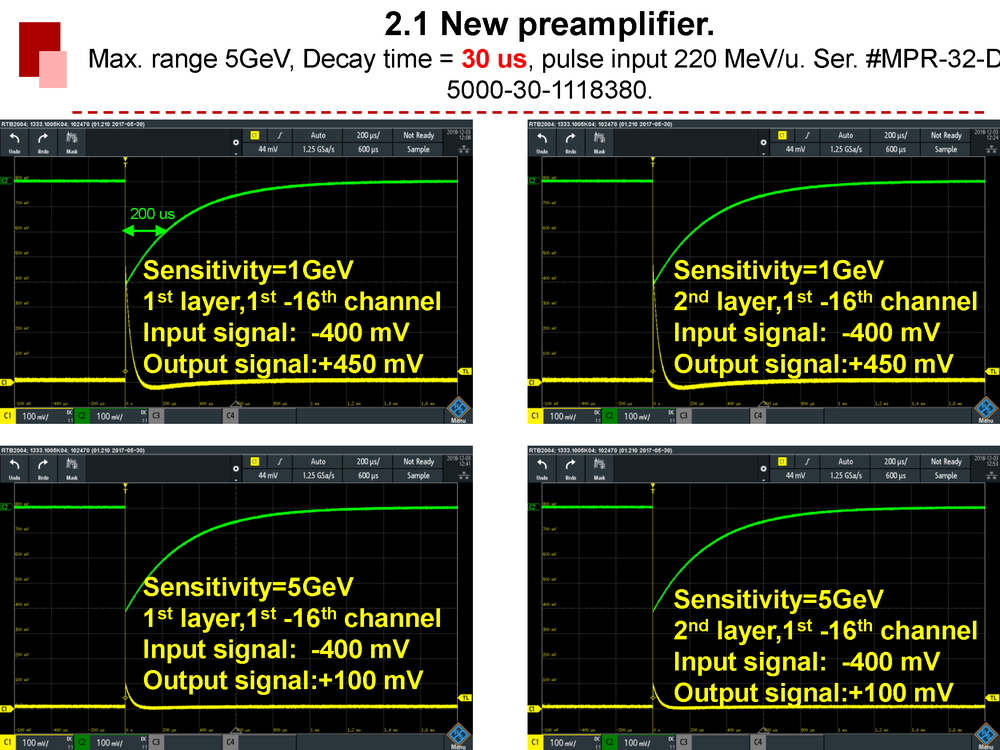

New: Max. range 5GeV, Two sensitivity options: 1 GeV and 5 GeV, Decay time = 30 us, pulse input 220 MeV/u, Ser. #MPR-32-D-5000-30-1118380.

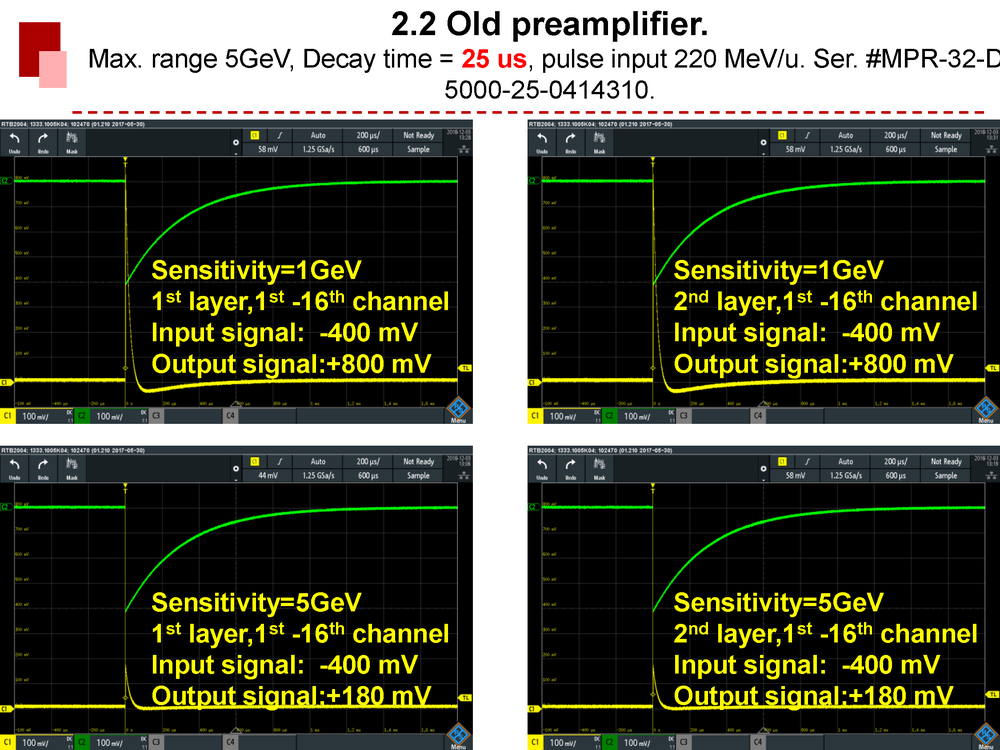

Old: Max. range 5GeV, Two sensitivity options: 1 GeV and 5 GeV, Decay time = 25 us, pulse input 220 MeV/u. Ser. #MPR-32-D-5000-25-0414310.

Conclusion:
Both pre-amplifiers work well.

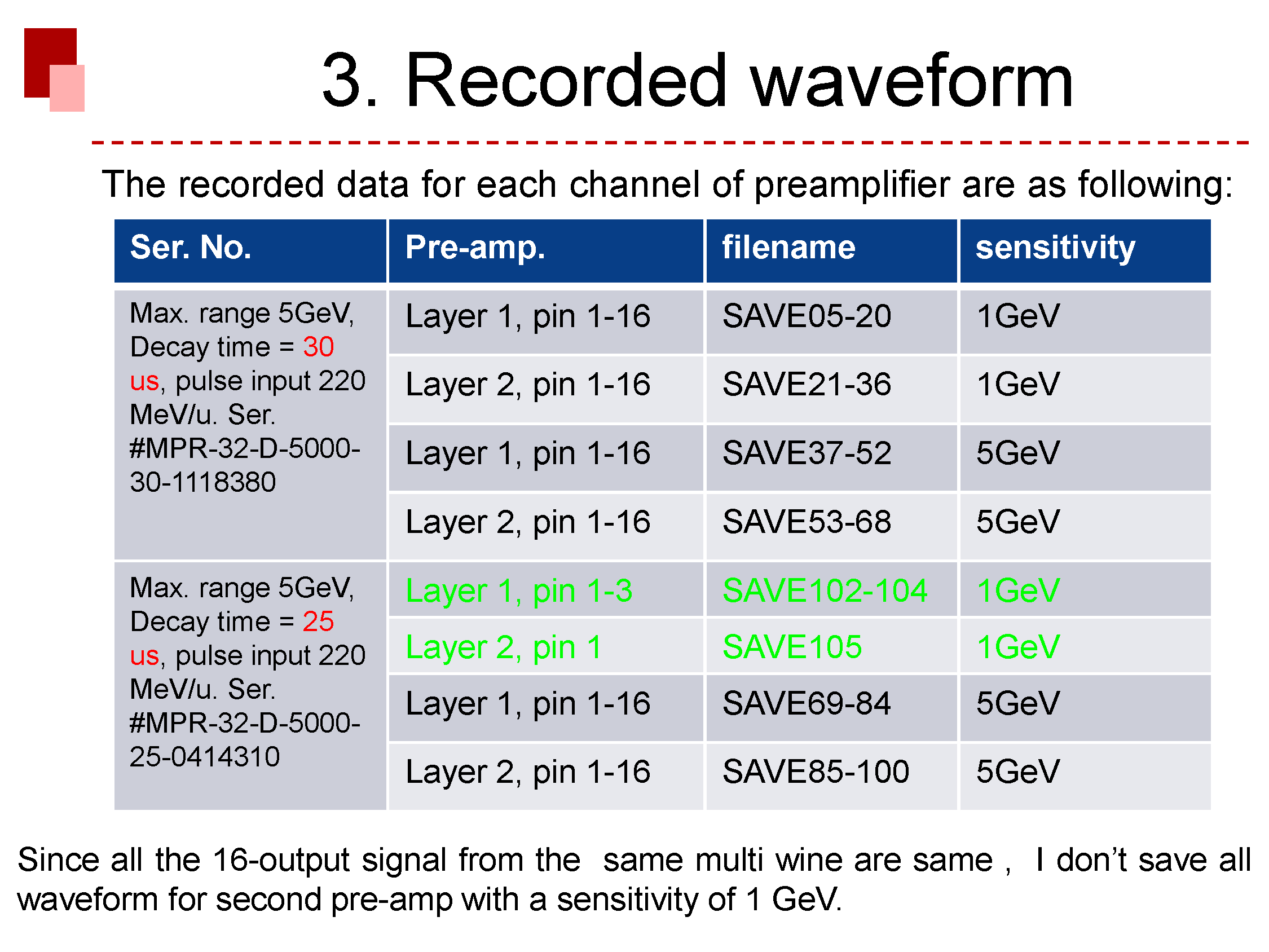

The summary is attached in the followings:
