| Bound beta decay experiment on Tl-205 |
Not logged in |
 |
|
|
|
Message ID: 8
Entry time: Tue May 7 15:52:47 2019
|
| Author: |
Chen, Sidhu |
| Category: |
SlowControl |
| Subject: |
GUI for remote control of MSCF+MHV4 [detailed] |
|
|
We have a GUI for remote controlling our MesyTec modules MSCF16 and MHV4 for E121 experiment.
Here is the instructions to run it:
1. login to GSI-linux using <litv-exp> user
litv-exp@astrum1:~$ ssh -X litv-exp@lxg1254.gsi.de
2. get the EPICS environment by typing in terminal: epicsfind
litv-exp@lxg1254:~$ epicsfind
Found nice EPICS in /u/litv-exp/epics/opt_x86_64-linux-gnu_4.9.2.
3. type in terminal: GUIe121 (alias for 'medm -x /u/litv-exp/E121/medm/e121.adl')
litv-exp@lxg1254:~$ GUIe121
if you get the message: 'medm: command not found' you didn't load the EPICS environment (1.)

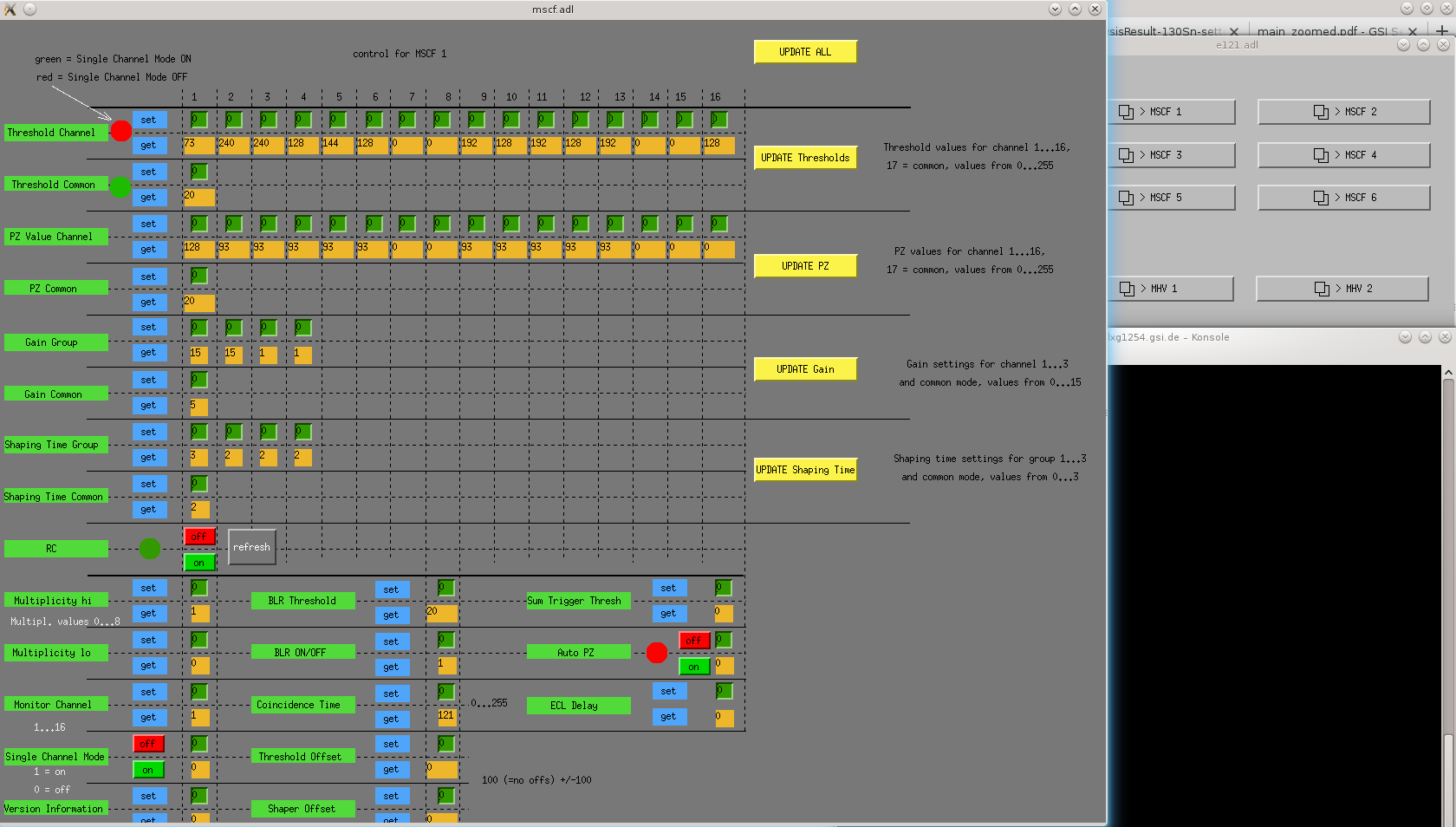

The GUI is more or less self-explaining.
Be sure to follow this procedure when changing a value (e.g. threshold for MSCF):
1. click on small text-panel with value
2. leave mouse pointer inside panel
3. change value by typing
4. press enter |
