Message ID: 9     Entry time: Fri Nov 5 17:23:23 2021
Author: Rodolfo
Category: DAQ
Subject: Dye trigger out

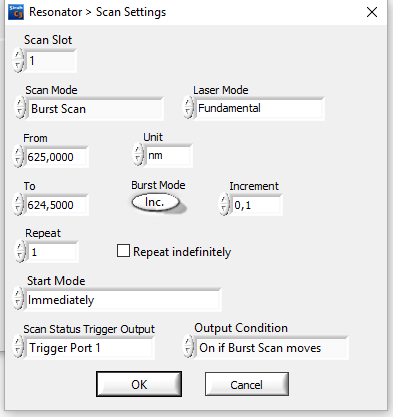

The dye laser offers different scan settings (see pages 65 - 67 of the user manual). We are using the following setting, see attached screenshot, to produce the status "laser busy" for the DAQ.



This Output Trigger CH1 is then strobed coincidence with the 1 MHz clock.
