22:10  SIS Trafo GS09DT scale was changed to 4e8 (not just the lassie monitor)

[TABLE border="1"]
Time | Part. Det. Int | SIS-intensity| accumulations in ESR |  cooler-HV PTB K250 |  cooler-HV PTB red | cooler-HV orange | LMD-DAQ1 Files | LMD-DAQ2 Files | scan range(nm) | number of positions | dwell time (laser shots) | n loops | checked laser position | mesytec rate ok | comments
|-
 22:08 | 17000 | 2.5e9 | 30 | 104524 | 104527 | 104528 | 205 | 233 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes | TE slits -6 +6
|
|-
 22:27 | 7200 | 4e8 | 30 | 104524 | 104527 | 104528 | 206 | 234 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes | TE slits -6 +6 | small peak on right side, not good scraped
|
|-
 22: | 00 | 4e8 | 30 | 104524 | 104527 | 104528 | 20 | 23 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes | TE slits -6 +6 |
|
|-
[/TABLE]

15:30 We have a break due to an issue at UNILAC (quadrupole failed). Also radiation safety interlock was triggered at the fragment separator. This also pushed a faradaycup into the ESR (GE01DC3VP).
Just before the issue during the last bunching, the peak was misaligned to the marker in the Schottky. The marker was sitting on the right flank. So the electron-cooled 229Th did not match with the bunching frequency anymore. We are preparing to adjust the cooler voltage to fix this. For some reason the frequency recovered and is back to its original position. However, our accumulations do not seem to work as well as before, we stagnate much earlier and at a much lower level.

15:50 Beam is back, Carsten is still investigating the drop in intensity we saw before the UNILAC failure.

17:15 TE slits were on -8 and +8, opening to -11 and +11, no change to acquisition pattern, something is still wrong

18:00 We were locked out by HHT people for 30+ mins

18:27 We had to call in ESR support

[TABLE border="1"]
Time | Part. Det. Int | SIS-intensity| accumulations in ESR |  cooler-HV PTB K250 |  cooler-HV PTB red | cooler-HV orange | LMD-DAQ1 Files | LMD-DAQ2 Files | scan range(nm) | number of positions | dwell time (laser shots) | n loops | checked laser position | mesytec rate ok | comments
|-
14:24 | 15800 | 2.74 e9 | 30 | 104524 | 104527 | 104528 | 196 | 224 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
|Carsten optimizing beam at HKR with ESR colleagues
|-
14:24 | 6800 | 1.16 e9 | 30 | 104524 | 104527 | 104528 | 197 | 225 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
|Carsten is back in measurement hut
|-
16:30 | 1100 | 1.1 e9 | 40 | 104524 | 104527 | 104528 | 198 | 226 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
| Searching for reason for small particle number
|-
17:00 | 1200 | 0.5 e9 | 30 | 104524 | 104527 | 104528 | 199 | 227 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
|
|-
 19:57 | 7800 |  1e9 | 30 | 104524 | 104527 | 104528 | 200 | 228 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
| Restarting some things at ESR
|-
 20:16 | 6800 |  1.5e9 | 30 | 104524 | 104527 | 104528 | 201 | 229 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
| Restarting some things at ESR
|-
 20:41 | 7200 | 1.5e9 | 30 | 104524 | 104527 | 104528 | 202 | 230 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
| Restarting some things at ESR
|-
 21:28 | 6000 | 2.65e9 | 30 | 104524 | 104527 | 104528 | 203 | 231 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
|
|-
 21:47 | 6600 | 2.7e9 | 30 | 104524 | 104527 | 104528 | 204 | 232 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes |
|
|-
 22:08 | 17000 | 2.5e9 | 30 | 104524 | 104527 | 104528 | 205 | 233 | 551.91 - 549.41 | 501 | 15 | 1 | yes | yes | TE slits -7 +7
|
|-
[/TABLE]

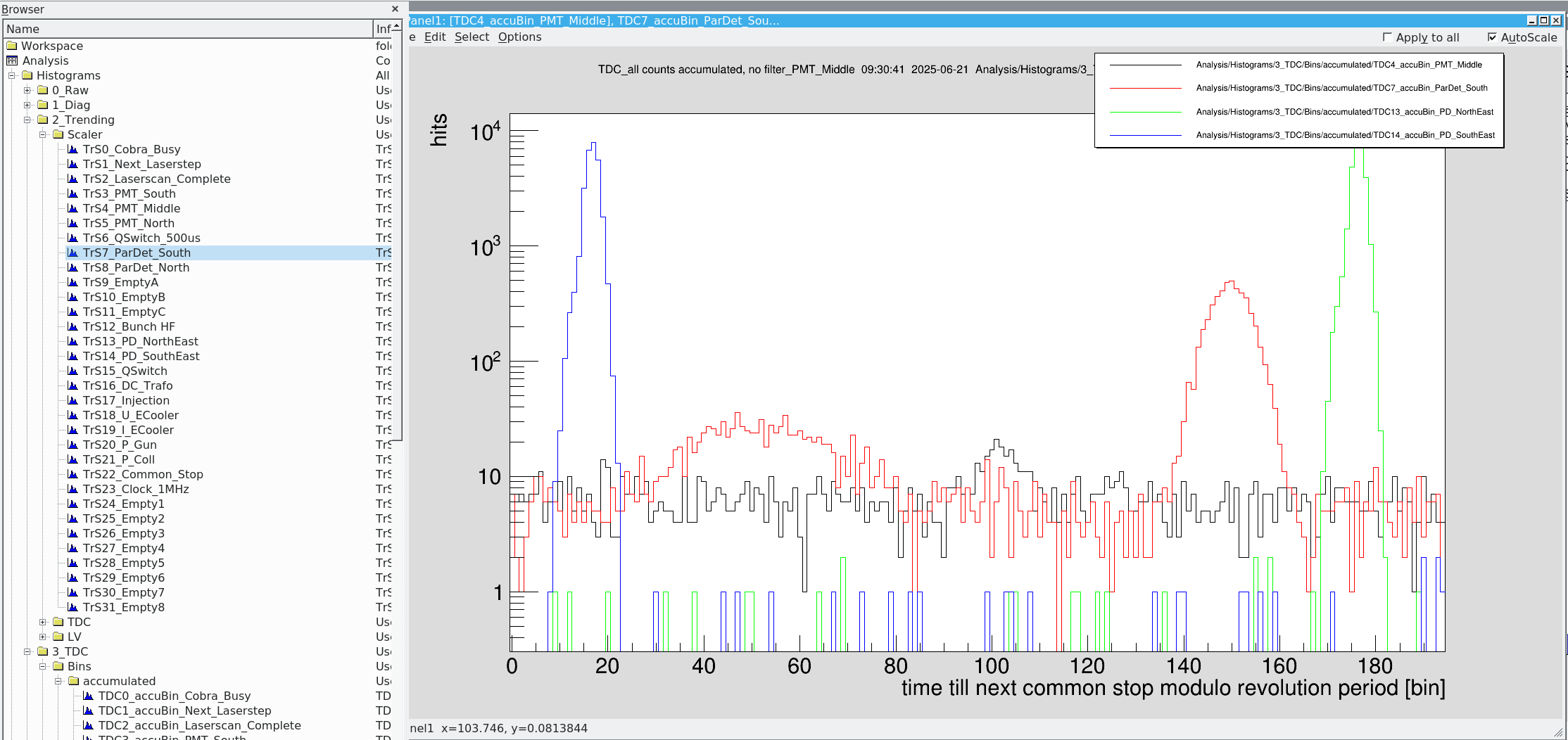

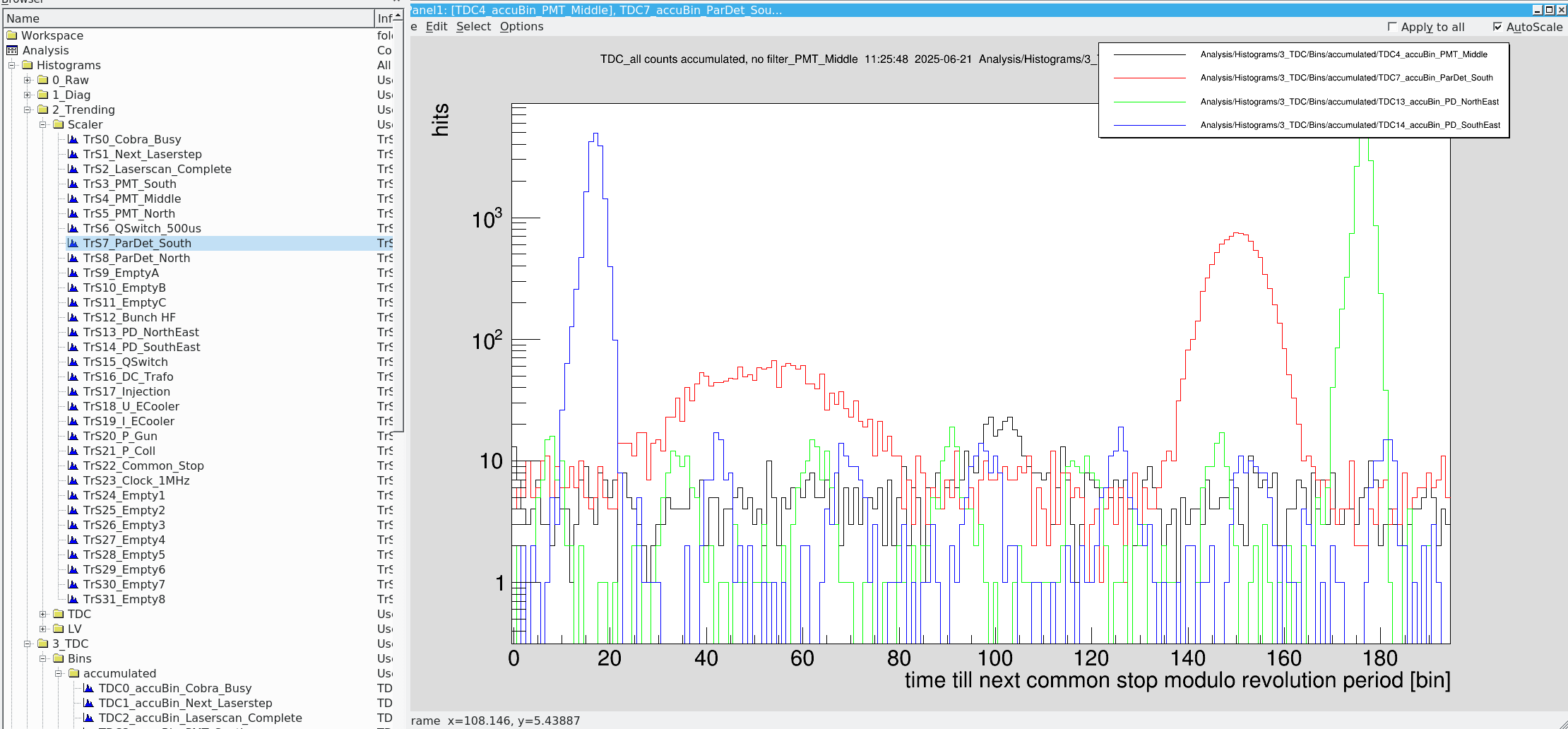

We cross-checked the timing. Laser pulse is detected at bins 136 (PD-North) and 171 (PD-south), respectively. Therefore, the laser puls is in the electron cooler at 153.5. The revolution period corresponds to 3e8Hz / 1.54315MHz = 194.
The ion bunch must travel 2.5m more than the half of the circumference (108.3m). Taking this into account, the ion bunch must be detected (0.5 + 2.5 / 108.3) * 194 = 101.5 bins later (meaning less) than 153.5.
Finally, we are happy that the timing is still perfect, since the ion bunch arrives at 52.

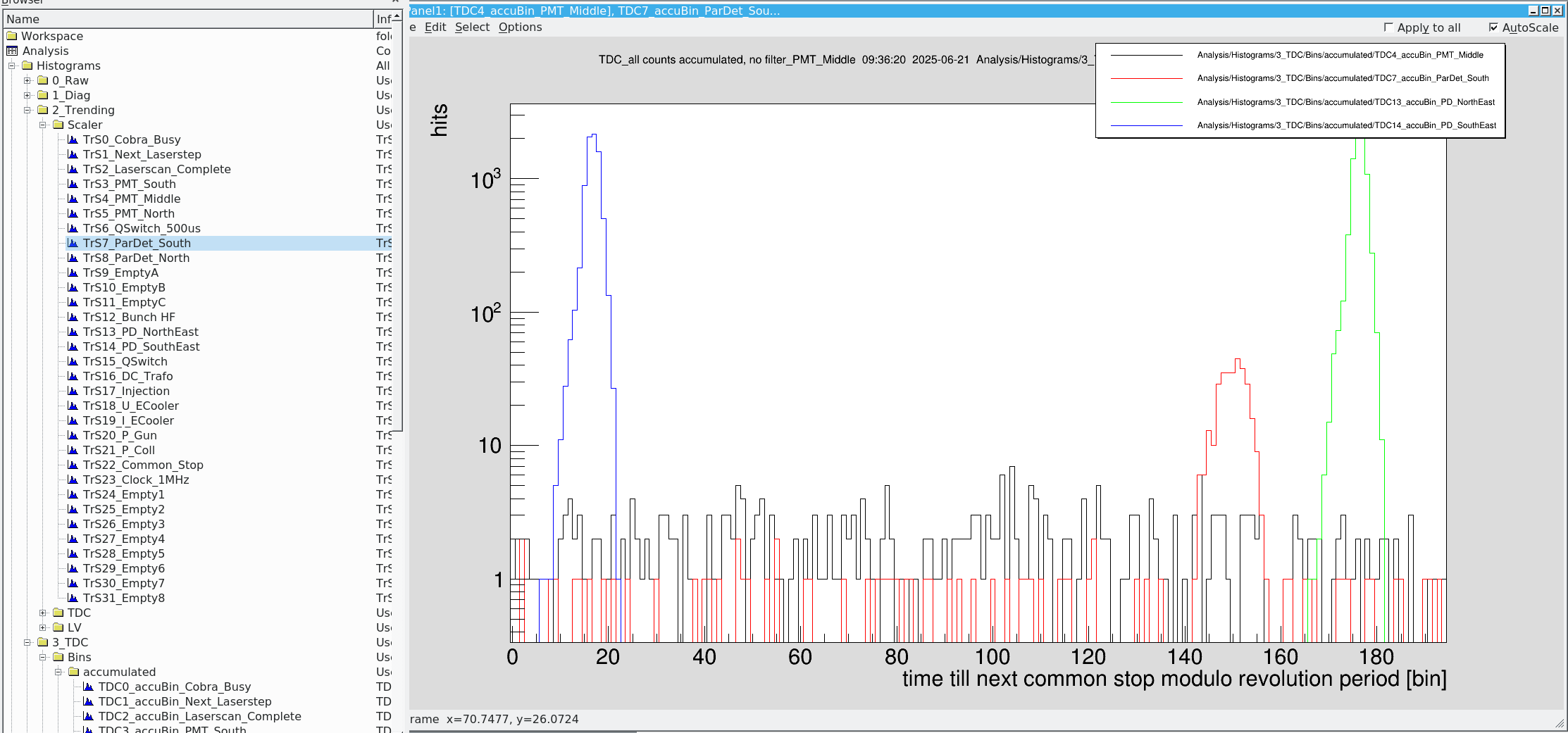

We checked the timing (before the start of the measurement cycle documented below).
Timing and measurement window are attached.

current settings of PMT voltages and thresholds at the CAEN CFD:

PMT South   [HV ch2: 2700V]  [CFD ch0: 8]

PMT Middle  [HV ch1: 2850V]  [CFD ch1: 8]

PMT Nord    [HV ch3: 2850V]  [CFD ch2: 9]

Cobra's FCU was recalibrated. Table saved as FCU_547-554_RS_2024-06-25.fcu.

In the SetParameters.C file is a parameter called fPar->piPhaseOffset. It was shifted from 100 to 50 in order to see ion bunches in the pmt signal and laser pulses in the photodiode signal during the same revolution in the TDC spectrum. Note that this parameter must be taken
into account when setting the window conditions of the arrival time in the SetConditions.C file.

We tested the PMTs again, this time with an UV LED that is mounted at a window close to the XUV detector.
PMT south showed a very clear increase in count rate from about 1 to 50 Hz.
PMT mid also showed a small increase by a few Hz.
For PMT north there was no great change between LED off and on, but we think that the count rate also very slightly increased. Note, that PMT north is also the furthest away from the LED.

Also we saw a difference between single- and multi-photon events at PMT south.

We exchanged the old BBO of the Cobra's FCU with a new one. The output power of the Cobra was around 120mJ. In the end, we achieved a UV power of about 21mJ. In addition, we optimized the fiber-coupling to the wavemeter.

Since yesterday, channel 0 of the CAEN PS is dead (no voltage even without cable).
Changed detector south to channel 3.

• Very long cooling times are needed after deceleration to cool the decelerated beam.

• Electron energy and decelerated beam are not well matched.

• 229Th is cooled even later after the other ions

• Even after scraping some contaminats remained that were either rebunched and show side bands. or move around as a "cloud".

• This can be seen on the detectors (e.g. particle dector, but also PMTS) as a flat bump in the folded "accu" spectra. the signal decreases with time. I.e., It moves around the ring with a frequency matching the one of the wanted species but with some "phase offset" of about half a ESR revolution. The signal is ratger stron but vanishes ("decays") after some time. Probably finally scraped og

• It is very tigth to set the scrapers correctly (and the particke detector).

• Fortunately the ion beam optical setting is such that the scraper in the south is in optimal position just at its "Endlage inne" (values see below)

• SIS intensiteis have increased but are still on average a factor 3-4 lower than one year ago.

• As a sidenode: For optimal scraping, the beam decelerated, debunched, cooled, scraped and rebunhced. Thus, one can see if there are contaminants, and, in consequence clean the beam better from unwanted species.

• The bunches are still quite long given the number of ions, increasing of the bucket fill from 1.0 to values large than 1.4 gives problems such as phase shifts , ande changes even inbetween a waiting/measurement time. to be discussed with the specialists on monday


• The cooling energy is set 100V higher - which also matches better to a recalculated scanning range; ( PTB 104513 V, Ohmlabs 1040509 V). This better matching improves cooling times but is till not optimal. It is noted, tha tthe cooling times are long since a broad cloud of ions is decelerated, and the electron current is low (was 50 mA, now 60 mA).

• Electron current increased 50 mA -> 60 mA.

• Scrapers are moved in in two steps with an intermediate posiions to mitigate the problem of overshoots when driving. Before rebunching they are slightly moved out to make room for the slightly larger
  bunched beam.

• Due to the change of the voltage the bunching frequency has changed (see post of the start of the test measurements); electron cooled DC beam and bunched beam are (alomost) matched using the RSA in 100kHz scale. The new reference frequency on the RSA are (old: 243.750625MHz, rev. frequency 1.542728 MHz, 158 harm - new: 243.815 MHz, 1.54313 MHz).
  [New settings for timing and scraper position will be attached as fotos; an emergency backup of the settings are stored in an earlier post).

• The cooler actually drags the ion very slowly to its final position after ~30 s just before rebunichng (visible by the shift of the peak relative to the marker just before rebunching). This is interpreted as and effet of the power supplies only very slowly reaching a final value to within a few kHz.


# Version: 1.3
# Comment: ParamModi Export at 2025-06-22T22:28:05.633712878+02:00[Europe/Berlin]
# Context: ESR_25_12_THORIUM_20June_v3.C1
# Columns: PARAMETERNAME,VALUE,UNIT,BEAMPROCESSPURPOSE
LOGICAL.GE01MU4I/I_S,4491.05043029445,A,RING_INJECTION
LOGICAL.GE01MU4I/MSEP_HKICK_S,0.0043,rad,RING_INJECTION
LOGICAL.GE01MU4I/MSEP_K0L_THEO_S,-0.12,rad,RING_INJECTION
LOGICAL.GE01QS8F/I,463.143014,A,RING_INJECTION
LOGICAL.GE01QS8F/K1L,0.3896271,1/m,RING_INJECTION
LOGICAL.GE01QS8F/K1L,0.3896271,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS8F/K1L,0.3896271,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS8F/K1L,0.3886767,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS9D/I,502.08169,A,RING_INJECTION
LOGICAL.GE01QS9D/K1L,-0.42217205,1/m,RING_INJECTION
LOGICAL.GE01QS9D/K1L,-0.42217205,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS9D/K1L,-0.42217205,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS9D/K1L,-0.42156725,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01KY4/I,0.0,A,RING_INJECTION
LOGICAL.GE01KY4/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KY4/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY4/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY4/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY4/VKICK_ECB,0.0,rad,RING_INJECTION
LOGICAL.GE02KY1/I,0.0,A,RING_INJECTION
LOGICAL.GE02KY1/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KY1/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY1/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY1/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY1/VKICK_ECB,0.0,rad,RING_INJECTION
LOGICAL.GE02KX1/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KX1/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX1/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX1/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX1/HKICK_ECB,-0.0022289887,rad,RING_INJECTION
LOGICAL.GE02KX1/ICORR,49.77949,A,RING_INJECTION
LOGICAL.GE02KX2/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KX2/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX2/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX2/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX2/HKICK_ECB,9.307865E-4,rad,RING_INJECTION
LOGICAL.GE02KX2/ICORR,-81.07324,A,RING_INJECTION
LOGICAL.GE02KS1/I,48.447561,A,RING_INJECTION
LOGICAL.GE02KS1/K2L,-0.189870882,1/m²,RING_INJECTION
LOGICAL.GE02KS1/K2L,-0.189870882,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS1/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS1/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS2/I,35.692605,A,RING_INJECTION
LOGICAL.GE02KS2/K2L,0.139882922,1/m²,RING_INJECTION
LOGICAL.GE02KS2/K2L,0.139882922,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS2/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS2/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KY2/I,0.0,A,RING_INJECTION
LOGICAL.GE02KY2/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KY2/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY2/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY2/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY2/VKICK_ECB,0.0,rad,RING_INJECTION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE02DD2_G/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE02DD2_G/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,-0.035,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION1_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,-0.07,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,-0.08,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,-0.035,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DD2_G/PPOS_POSITION2_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02MK/KICKER_HKICK_S,-0.0048,rad,RING_INJECTION
LOGICAL.GE02MK/TKICK_OVER_TREV_S,0.4,,RING_INJECTION
LOGICAL.GE02KX3/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KX3/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX3/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX3/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX3/ICORR,32.4177,A,RING_INJECTION
LOGICAL.GE02KX4/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KX4/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX4/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX4/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX4/ICORR,-43.9735,A,RING_INJECTION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE02DS3HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE02DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,0.017,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,0.015,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION1_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,0.0175,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,0.015,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE02DS3HG/PPOS_POSITION2_S,-0.12,m,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,902.595,V,RING_INJECTION
LOGICAL.GE02BE1/URF,902.595,V,RING_BUNCHING
LOGICAL.GE02BE1/URF,902.595,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,902.595,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,902.595,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,902.595,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,902.595,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,902.595,V,RING_REBUNCHING
LOGICAL.GE02BE1/URF,902.595,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,902.595,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,577.661,V,RING_RAMP
LOGICAL.GE02BE1/URF,577.661,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,577.661,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,577.661,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,577.661,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,577.661,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,577.661,V,RING_RAMP
LOGICAL.GE02BE1/URF,1188.106,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE02BE1/URF,131.215,V,RING_INTERMEDIATE
LOGICAL.GE02BE1/URF,131.215,V,RING_INTERMEDIATE
LOGICAL.GE02KY3/I,0.0,A,RING_INJECTION
LOGICAL.GE02KY3/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KY3/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY3/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY3/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY3/VKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GE02KS3/I,35.692605,A,RING_INJECTION
LOGICAL.GE02KS3/K2L,0.139882922,1/m²,RING_INJECTION
LOGICAL.GE02KS3/K2L,0.139882922,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS3/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS3/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS4/I,48.447561,A,RING_INJECTION
LOGICAL.GE02KS4/K2L,-0.189870882,1/m²,RING_INJECTION
LOGICAL.GE02KS4/K2L,-0.189870882,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS4/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KS4/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE02KX5/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KX5/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX5/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX5/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX5/HKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GE02KX5/ICORR,-31.00894,A,RING_INJECTION
LOGICAL.GE02KX6/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KX6/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX6/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX6/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KX6/HKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GE02KX6/ICORR,0.0,A,RING_INJECTION
LOGICAL.GE02KY4/I,0.0,A,RING_INJECTION
LOGICAL.GE02KY4/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE02KY4/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY4/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY4/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE02KY4/VKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDS1HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEITKX1/I_S,0.0,A,RING_INJECTION
LOGICAL.GEITKX1/K0L_SPEC_S,-1.047197,rad,RING_INJECTION
LOGICAL.GEITQT11/I_S,0.0,A,RING_INJECTION
LOGICAL.GEITQT11/K1L_SPEC_S,-0.293044,1/m,RING_INJECTION
LOGICAL.GEITQT12/I_S,0.0,A,RING_INJECTION
LOGICAL.GEITQT12/K1L_SPEC_S,0.820468,1/m,RING_INJECTION
LOGICAL.GEITQT13/I_S,0.0,A,RING_INJECTION
LOGICAL.GEITQT13/K1L_SPEC_S,-0.293044,1/m,RING_INJECTION
LOGICAL.GEITKX2/I_S,0.0,A,RING_INJECTION
LOGICAL.GEITKX2/K0L_SPEC_S,-1.047197,rad,RING_INJECTION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GEEXDD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01KY1/I,0.0,A,RING_INJECTION
LOGICAL.GE01KY1/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KY1/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY1/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY1/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY1/VKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GE01QS0D/I,502.08169,A,RING_INJECTION
LOGICAL.GE01QS0D/K1L,-0.42217205,1/m,RING_INJECTION
LOGICAL.GE01QS0D/K1L,-0.42217205,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS0D/K1L,-0.42217205,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS0D/K1L,-0.42156725,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS1F/I,463.143014,A,RING_INJECTION
LOGICAL.GE01QS1F/K1L,0.3896271,1/m,RING_INJECTION
LOGICAL.GE01QS1F/K1L,0.3896271,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS1F/K1L,0.3896271,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS1F/K1L,0.3886767,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD3IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD3IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01KX1/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KX1/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX1/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX1/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX1/HKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GE01KX1/ICORR,15.41154,A,RING_INJECTION
LOGICAL.GE01KX2/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KX2/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX2/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX2/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX2/HKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GE01KX2/ICORR,-43.06471,A,RING_INJECTION
LOGICAL.GE01MU1/I,2770.66501,A,RING_INJECTION
LOGICAL.GE01MU1/K0L,1.04719755,rad,RING_INJECTION
LOGICAL.GE01MU1/K0L,1.04719755,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01MU1/K0L,1.04719755,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01MU1/K0L,1.04719755,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01QS2F/I,335.158283,A,RING_INJECTION
LOGICAL.GE01QS2F/K1L,0.28228511,1/m,RING_INJECTION
LOGICAL.GE01QS2F/K1L,0.28228511,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS2F/K1L,0.28228511,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS2F/K1L,0.28148391,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01KS1/I,48.447561,A,RING_INJECTION
LOGICAL.GE01KS1/K2L,-0.189870882,1/m²,RING_INJECTION
LOGICAL.GE01KS1/K2L,-0.189870882,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS1/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS1/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01QS3D/I,450.58168,A,RING_INJECTION
LOGICAL.GE01QS3D/K1L,-0.56944868,1/m,RING_INJECTION
LOGICAL.GE01QS3D/K1L,-0.56944868,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS3D/K1L,-0.56944868,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS3D/K1L,-0.56858608,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS4F/I,407.036879,A,RING_INJECTION
LOGICAL.GE01QS4F/K1L,0.35413758,1/m,RING_INJECTION
LOGICAL.GE01QS4F/K1L,0.35413758,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS4F/K1L,0.35413758,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS4F/K1L,0.35323918,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01KS2/I,35.692605,A,RING_INJECTION
LOGICAL.GE01KS2/K2L,0.139882922,1/m²,RING_INJECTION
LOGICAL.GE01KS2/K2L,0.139882922,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS2/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS2/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KY2/I,0.0,A,RING_INJECTION
LOGICAL.GE01KY2/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KY2/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY2/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY2/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY2/VKICK_TAB,0.0,rad,RING_INJECTION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD2IG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD2IG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/ACTIVE_S,true,,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,0.12,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,0.0085,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION1_S,0.12,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,0.006,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,0.0085,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2IG/PPOS_POSITION2_S,0.12,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DD2AG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,-0.125,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DD2AG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01MU5L/I_S,0.0,A,RING_INJECTION
LOGICAL.GE01MU5L/MSEP_HKICK_S,0.0,rad,RING_INJECTION
LOGICAL.GE01MU5L/MSEP_HKICK_S,---,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01MU5L/MSEP_HKICK_S,---,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01MU5L/MSEP_HKICK_S,---,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01MU5L/MSEP_K0L_THEO_S,0.0,rad,RING_INJECTION
LOGICAL.GE01MU5L/MSEP_K0L_THEO_S,---,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01MU5L/MSEP_K0L_THEO_S,---,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01MU5L/MSEP_K0L_THEO_S,---,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX3/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KX3/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX3/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX3/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX3/ICORR,2.38587,A,RING_INJECTION
LOGICAL.GE01KX4/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KX4/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX4/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX4/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX4/ICORR,-7.58189,A,RING_INJECTION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INJECTION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_BUNCHING
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_REBUNCHING
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RAMP
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_RF_MANIPULATION
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_PERFORM
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_WAIT
LOGICAL.GE01DS3HG/ACTIVE_S,false,,STORAGE_MANIP_RESTART_FGS
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/ACTIVE_S,false,,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION1_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01DS3HG/PPOS_POSITION2_S,---,m,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_INJECTION
LOGICAL.GE01BU1/URF,0.0,V,RING_BUNCHING
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_REBUNCHING
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_RAMP
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_RAMP
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU1/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_INJECTION
LOGICAL.GE01BU2/URF,0.0,V,RING_BUNCHING
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_REBUNCHING
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_RAMP
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_RAMP
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_RF_MANIPULATION
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01BU2/URF,0.0,V,RING_INTERMEDIATE
LOGICAL.GE01KY3/I,0.0,A,RING_INJECTION
LOGICAL.GE01KY3/VKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KY3/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY3/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY3/VKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KY3/VKICK_ECB,0.0,rad,RING_INJECTION
LOGICAL.GE01KS3/I,35.692605,A,RING_INJECTION
LOGICAL.GE01KS3/K2L,0.139882922,1/m²,RING_INJECTION
LOGICAL.GE01KS3/K2L,0.139882922,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS3/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS3/K2L,0.139886222,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01QS5F/I,407.036879,A,RING_INJECTION
LOGICAL.GE01QS5F/K1L,0.35413758,1/m,RING_INJECTION
LOGICAL.GE01QS5F/K1L,0.35413758,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS5F/K1L,0.35413758,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS5F/K1L,0.35323918,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS6D/I,450.58168,A,RING_INJECTION
LOGICAL.GE01QS6D/K1L,-0.56944868,1/m,RING_INJECTION
LOGICAL.GE01QS6D/K1L,-0.56944868,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS6D/K1L,-0.56944868,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS6D/K1L,-0.56858608,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01KS4/I,48.447561,A,RING_INJECTION
LOGICAL.GE01KS4/K2L,-0.189870882,1/m²,RING_INJECTION
LOGICAL.GE01KS4/K2L,-0.189870882,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS4/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01KS4/K2L,-0.189886682,1/m²,STORAGE_MANIP_WAIT
LOGICAL.GE01QS7F/I,335.158283,A,RING_INJECTION
LOGICAL.GE01QS7F/K1L,0.28228511,1/m,RING_INJECTION
LOGICAL.GE01QS7F/K1L,0.28228511,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS7F/K1L,0.28228511,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01QS7F/K1L,0.28148391,1/m,STORAGE_MANIP_WAIT
LOGICAL.GE01KX5/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KX5/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX5/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX5/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX5/HKICK_ECB,-9.307865E-4,rad,RING_INJECTION
LOGICAL.GE01KX5/ICORR,-16.71497,A,RING_INJECTION
LOGICAL.GE01KX6/HKICK_COC,0.0,rad,RING_INJECTION
LOGICAL.GE01KX6/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX6/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX6/HKICK_COC,0.0,rad,STORAGE_MANIP_WAIT
LOGICAL.GE01KX6/HKICK_ECB,0.0022289887,rad,RING_INJECTION
LOGICAL.GE01KX6/ICORR,-34.24571,A,RING_INJECTION
ESRB2B/B2B_SID_EXT_S,3,,RING_INJECTION
ESRB2B/B2B_TRIGGER_OFFSET_S,0.0,deg,RING_INJECTION
ESRBEAM/BEAM_MODE_S,---,,RING_INJECTION
ESRBEAM/BRHO_START_END_S,[8.16513798, 8.16513798],Tm,RING_INJECTION
ESRBEAM/BRHO_START_END_S,[8.16513798, 8.16513798],Tm,RING_RAMP
ESRBEAM/BRHO_START_END_S,[8.16513798, 5.35118166],Tm,RING_RAMP
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_INJECTION
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_BUNCHING
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_REBUNCHING
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,STORAGE_MANIP_WAIT
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 4.0]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[4.0, 3.2]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.2]],,RING_RAMP
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.2]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.2]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.2]],,STORAGE_MANIP_WAIT
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.2]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.2]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.2]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[3.2, 3.31]],,RING_RAMP
ESRBEAM/BUCKETFILL_RAW_S,[[3.31, 0.0]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[0.0, 1.1]],,RING_RF_MANIPULATION
ESRBEAM/BUCKETFILL_RAW_S,[[1.1, 1.1]],,STORAGE_MANIP_WAIT
ESRBEAM/BUCKETFILL_RAW_S,[[1.1, 1.1]],,RING_INTERMEDIATE
ESRBEAM/BUCKETFILL_RAW_S,[[1.1, 1.1]],,RING_INTERMEDIATE
ESRBEAM/CH_END_S,0.0,,RING_INJECTION
ESRBEAM/CH_END_S,1.0E-4,,RING_RAMP
ESRBEAM/CH_END_S,1.0E-4,,RING_RAMP
ESRBEAM/CV_END_S,0.0,,RING_INJECTION
ESRBEAM/CV_END_S,1.0E-4,,RING_RAMP
ESRBEAM/CV_END_S,1.0E-4,,RING_RAMP
ESRBEAM/DELTAR,0.0,m,RING_INJECTION
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,STORAGE_MANIP_WAIT
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,STORAGE_MANIP_WAIT
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,STORAGE_MANIP_WAIT
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
ESRBEAM/DPBL,0.0,,RING_INJECTION
ESRBEAM/DPBL,0.0,,STORAGE_MANIP_WAIT
ESRBEAM/DPBL,0.0,,RING_RAMP
ESRBEAM/DPBL,0.0,,STORAGE_MANIP_WAIT
ESRBEAM/DPBL,0.0,,RING_RAMP
ESRBEAM/DPBL,0.0,,STORAGE_MANIP_WAIT
ESRBEAM/DPFREV,-0.00407,,RING_INJECTION
ESRBEAM/DPFREV,-0.00407,,RING_BUNCHING
ESRBEAM/DPFREV,-0.00407,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,-0.00407,,RING_INTERMEDIATE
ESRBEAM/DPFREV,-0.00407,,RING_INTERMEDIATE
ESRBEAM/DPFREV,-0.00407,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,-0.00407,,RING_INTERMEDIATE
ESRBEAM/DPFREV,-0.00407,,RING_REBUNCHING
ESRBEAM/DPFREV,-0.00407,,STORAGE_MANIP_WAIT
ESRBEAM/DPFREV,-0.00407,,RING_INTERMEDIATE
ESRBEAM/DPFREV,-0.00407,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,-0.00407,,RING_RAMP
ESRBEAM/DPFREV,-0.00407,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,-0.00407,,RING_INTERMEDIATE
ESRBEAM/DPFREV,-0.00407,,STORAGE_MANIP_WAIT
ESRBEAM/DPFREV,-0.00407,,RING_INTERMEDIATE
ESRBEAM/DPFREV,-0.00407,,RING_INTERMEDIATE
ESRBEAM/DPFREV,-0.00407,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,-0.00407,,RING_RAMP
ESRBEAM/DPFREV,0.01,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,0.00513,,RING_INTERMEDIATE
ESRBEAM/DPFREV,0.00513,,RING_INTERMEDIATE
ESRBEAM/DPFREV,0.00513,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,0.00513,,RING_INTERMEDIATE
ESRBEAM/DPFREV,0.00513,,RING_RF_MANIPULATION
ESRBEAM/DPFREV,0.00513,,STORAGE_MANIP_WAIT
ESRBEAM/DPFREV,0.00513,,RING_INTERMEDIATE
ESRBEAM/DPFREV,0.00513,,RING_INTERMEDIATE
ESRBEAM/E_S,4.0E8,eV/u,RING_INJECTION
ESRBEAM/E_S,4.0E8,eV/u,RING_RAMP
ESRBEAM/E_S,1.8943E8,eV/u,RING_RAMP
ESRBEAM/FREV,1974277.5,Hz,RING_INJECTION
ESRBEAM/FREV,1974277.5,Hz,RING_BUNCHING
ESRBEAM/FREV,1974277.5,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1974277.5,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1974277.5,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1974277.5,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1974277.5,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1974277.5,Hz,RING_REBUNCHING
ESRBEAM/FREV,1974277.5,Hz,STORAGE_MANIP_WAIT
ESRBEAM/FREV,1974277.5,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1974277.5,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1974277.5,Hz,RING_RAMP
ESRBEAM/FREV,1974277.5,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1974277.5,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1974277.5,Hz,STORAGE_MANIP_WAIT
ESRBEAM/FREV,1974277.5,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1974277.5,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1974277.5,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1974277.5,Hz,RING_RAMP
ESRBEAM/FREV,1547081.7,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1543135.9,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1543135.9,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1543135.9,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1543135.9,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1543135.9,Hz,RING_RF_MANIPULATION
ESRBEAM/FREV,1543135.9,Hz,STORAGE_MANIP_WAIT
ESRBEAM/FREV,1543135.9,Hz,RING_INTERMEDIATE
ESRBEAM/FREV,1543135.9,Hz,RING_INTERMEDIATE
ESRBEAM/H_INPUT_S,1,,RING_INJECTION
ESRBEAM/INJ_BUNCHPATTERN_S,[true],,RING_INJECTION
ESRBEAM/INJ_EMIH_S,1.0E-5,m*rad,RING_INJECTION
ESRBEAM/INJ_EMIL_S,0.11,eVs/u,RING_INJECTION
ESRBEAM/INJ_EMIV_S,1.0E-5,m*rad,RING_INJECTION
ESRBEAM/KL_AMPL_S,0.0,,RING_INJECTION
ESRBEAM/KL_AMPL_S,0.0,,RING_BUNCHING
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_REBUNCHING
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,---,,RING_RAMP
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,---,,RING_RAMP
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_INJECTION
ESRBEAM/KL_HARM_S,4,,RING_BUNCHING
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,1,,RING_REBUNCHING
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,---,,RING_RAMP
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,---,,RING_RAMP
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_RF_MANIPULATION
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_HARM_S,4,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_INJECTION
ESRBEAM/KL_OFFSET_S,0.0,,RING_BUNCHING
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_REBUNCHING
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,---,,RING_RAMP
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,---,,RING_RAMP
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INJECTION
ESRBEAM/KL_PHASE_S,0.0,deg,RING_BUNCHING
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_REBUNCHING
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,---,deg,RING_RAMP
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,---,deg,RING_RAMP
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
ESRBEAM/NPARTICLES_S,0.0,,RING_INJECTION
ESRBEAM/PARTICLE_SYMBOL_INPUT_S,229Th,,RING_INJECTION
ESRBEAM/QH_END_S,2.35,,RING_INJECTION
ESRBEAM/QH_END_S,2.3781,,RING_RAMP
ESRBEAM/QH_END_S,2.3781,,RING_RAMP
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INJECTION
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_BUNCHING
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_REBUNCHING
ESRBEAM/QH_START_END_S,[2.4, 2.4],,STORAGE_MANIP_PERFORM
ESRBEAM/QH_START_END_S,[2.4, 2.4],,STORAGE_MANIP_WAIT
ESRBEAM/QH_START_END_S,[2.4, 2.4],,STORAGE_MANIP_RESTART_FGS
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_RAMP
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.4, 2.4],,STORAGE_MANIP_PERFORM
ESRBEAM/QH_START_END_S,[2.4, 2.4],,STORAGE_MANIP_WAIT
ESRBEAM/QH_START_END_S,[2.4, 2.4],,STORAGE_MANIP_RESTART_FGS
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.4, 2.4],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.4, 2.39],,RING_RAMP
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_RF_MANIPULATION
ESRBEAM/QH_START_END_S,[2.39, 2.39],,STORAGE_MANIP_PERFORM
ESRBEAM/QH_START_END_S,[2.39, 2.39],,STORAGE_MANIP_WAIT
ESRBEAM/QH_START_END_S,[2.39, 2.39],,STORAGE_MANIP_RESTART_FGS
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_INTERMEDIATE
ESRBEAM/QH_START_END_S,[2.39, 2.39],,RING_INTERMEDIATE
ESRBEAM/QV_END_S,2.35,,RING_INJECTION
ESRBEAM/QV_END_S,2.1337,,RING_RAMP
ESRBEAM/QV_END_S,2.1337,,RING_RAMP
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INJECTION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_BUNCHING
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_REBUNCHING
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_PERFORM
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_WAIT
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_RESTART_FGS
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RAMP
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_PERFORM
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_WAIT
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_RESTART_FGS
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RAMP
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_RF_MANIPULATION
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_PERFORM
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_WAIT
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,STORAGE_MANIP_RESTART_FGS
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/QV_START_END_S,[2.3343, 2.3343],,RING_INTERMEDIATE
ESRBEAM/Q_INPUT_S,89,,RING_INJECTION
ESRIKICKER/KICKER_MODE_S,1,,RING_INJECTION
ESRIKICKER/KICKER_START_S,76.0,deg,RING_INJECTION
ESRIKICKER/KICKER_THIGH1_S,2.0260576337419641E-7,s,RING_INJECTION
ESRIKICKER/KICKER_TOFFSET1_S,3.35E-6,s,RING_INJECTION
ESRIKICKER/NBUNCH1_INPUT_S,1,,RING_INJECTION
ESRIKICKER/TGX_TIMING_TRIGGERED_B,false,,RING_INJECTION
ESROPTICS/OPTIC_NAME_RING_S,ESR_STANDARD_OPTICS_TABLE,,RING_INJECTION
ESROPTICS/TAU_END_S,0.0,,RING_INJECTION
ESROPTICS/TAU_END_S,0.0,,RING_RAMP
ESROPTICS/TAU_END_S,0.0,,RING_RAMP
ESRORBIT/XANG_ECB,0.0,rad,RING_INJECTION
ESRORBIT/XANG_ECB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/XANG_ECB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/XANG_ECB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/XANG_TAB,0.0,rad,RING_INJECTION
ESRORBIT/XANG_TAB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/XANG_TAB,0.00125,rad,STORAGE_MANIP_WAIT
ESRORBIT/XANG_TAB,0.00125,rad,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_ECB,0.0,m,RING_INJECTION
ESRORBIT/XPOS_ECB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_ECB,-0.01,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_ECB,-0.01,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_IKB,0.01,m,RING_INJECTION
ESRORBIT/XPOS_IKB,0.01,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_IKB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_IKB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCK1,0.0,m,RING_INJECTION
ESRORBIT/XPOS_SCK1,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCK1,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCK1,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCK2,0.015,m,RING_INJECTION
ESRORBIT/XPOS_SCK2,0.015,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCK2,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCK2,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCP1,0.0,m,RING_INJECTION
ESRORBIT/XPOS_SCP1,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCP1,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCP1,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCP2,0.015,m,RING_INJECTION
ESRORBIT/XPOS_SCP2,0.015,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCP2,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_SCP2,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_TAB,0.0,m,RING_INJECTION
ESRORBIT/XPOS_TAB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_TAB,-0.01,m,STORAGE_MANIP_WAIT
ESRORBIT/XPOS_TAB,-0.01,m,STORAGE_MANIP_WAIT
ESRORBIT/YANG_ECB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/YANG_ECB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/YANG_ECB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/YANG_TAB,0.0,rad,RING_INJECTION
ESRORBIT/YANG_TAB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/YANG_TAB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/YANG_TAB,0.0,rad,STORAGE_MANIP_WAIT
ESRORBIT/YPOS_ECB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/YPOS_ECB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/YPOS_ECB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/YPOS_TAB,0.0,m,RING_INJECTION
ESRORBIT/YPOS_TAB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/YPOS_TAB,0.0,m,STORAGE_MANIP_WAIT
ESRORBIT/YPOS_TAB,0.0,m,STORAGE_MANIP_WAIT
ESRRF/CAVITYPATTERN_INPUT_S,[false, false, true],,RING_INJECTION
ESRRF/CAVITY_MODE_2D_S,[],,RING_INJECTION
ESRRF/CAVITY_MODE_2D_S,[],,RING_BUNCHING
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_REBUNCHING
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_PERFORM
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_WAIT
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_RESTART_FGS
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,RING_RAMP
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_PERFORM
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_WAIT
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_RESTART_FGS
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,RING_RAMP
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_RF_MANIPULATION
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_PERFORM
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_WAIT
ESRRF/CAVITY_MODE_2D_S,[],,STORAGE_MANIP_RESTART_FGS
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/CAVITY_MODE_2D_S,[],,RING_INTERMEDIATE
ESRRF/DUALH_ACTIVE_S,false,,RING_INJECTION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INJECTION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_BUNCHING
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_REBUNCHING
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_RAMP
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_RAMP
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[-1.0, -1.0]],,RING_RF_MANIPULATION
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/DUALH_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
ESRRF/PHASE_OFFSET_S,0.0,deg,RING_INJECTION
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_REBUNCHING
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,[[5, -1, -1, -1]],,RING_RAMP
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,[[5, -1, -1, -1]],,RING_RAMP
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,[],,RING_RF_MANIPULATION
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/RF_MANIPULATION_RAW_S,---,,RING_INTERMEDIATE
ESRRF/SEQUENTIAL_RF_B,true,,RING_INJECTION
ESRSPEC/BRHO_SPEC_S,0.0,Tm,RING_INJECTION
ESRSPEC/E_SPEC_S,0.0,eV/u,RING_INJECTION
ESRSPEC/GAMMA_SPEC_S,1.0,,RING_INJECTION
ESRSPEC/GAMMA_SPEC_USER_S,1.0,,RING_INJECTION
ESRSPEC/SPEC_ACTIVE_B,false,,RING_INJECTION
ESRSYSTEM/GENERATE_MASP_MASKED_DEVICES_B,false,,RING_INJECTION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INJECTION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_BUNCHING
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_REBUNCHING
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RAMP
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RAMP
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_RF_MANIPULATION
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRSYSTEM/MASP_MASKED_DEVICES_INPUT_S,---,,RING_INTERMEDIATE
ESRTIMEPARAM/BDOT_S,[0.3, 0.3],T/s,BEAMOUT_PRE
ESRTIMEPARAM/BDOT_S,[0.3, 0.3],T/s,RING_RAMP
ESRTIMEPARAM/BDOT_S,[0.05, 0.05],T/s,RING_RAMP
ESRTIMEPARAM/BDOT_S,[0.3, 0.3],T/s,BEAMOUT_RAMP
ESRTIMEPARAM/BDOT_S,[0.3, 0.3],T/s,BEAMOUT_POST
ESRTIMEPARAM/BP_INDEX_B,[false],,RING_INJECTION
ESRTIMEPARAM/BP_INDEX_S,[-1],,RING_INJECTION
ESRTIMEPARAM/COUPLING_TIMEOUT_S,15.0,s,RING_INJECTION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,BEAMOUT_PRE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STATIC
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INJECTION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_BUNCHING
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_REBUNCHING
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RAMP
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RAMP
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,BEAMOUT_RAMP
ESRTIMEPARAM/ESR_ROUNDING_TYPE_FINAL_S,QUADRATIC,,BEAMOUT_POST
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,BEAMOUT_PRE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STATIC
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INJECTION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_BUNCHING
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_REBUNCHING
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RAMP
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RAMP
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_RF_MANIPULATION
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,RING_INTERMEDIATE
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,BEAMOUT_RAMP
ESRTIMEPARAM/ESR_ROUNDING_TYPE_INITIAL_S,QUADRATIC,,BEAMOUT_POST
ESRTIMEPARAM/EVENT_B,[false],,RING_INJECTION
ESRTIMEPARAM/EVENT_ID_S,[0],,RING_INJECTION
ESRTIMEPARAM/MINPDIST_S,0.0,,BEAMOUT_PRE
ESRTIMEPARAM/MINPDIST_S,0.0,,STATIC
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INJECTION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_BUNCHING
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_REBUNCHING
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RAMP
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RAMP
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_RF_MANIPULATION
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_WAIT
ESRTIMEPARAM/MINPDIST_S,0.0,,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,RING_INTERMEDIATE
ESRTIMEPARAM/MINPDIST_S,0.0,,BEAMOUT_RAMP
ESRTIMEPARAM/MINPDIST_S,0.0,,BEAMOUT_POST
ESRTIMEPARAM/OFFSET_S,[0.0],s,RING_INJECTION
ESRTIMEPARAM/TGRID_S,0.002,s,BEAMOUT_PRE
ESRTIMEPARAM/TGRID_S,0.002,s,STATIC
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INJECTION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_BUNCHING
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_REBUNCHING
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RAMP
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RAMP
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/TGRID_S,0.002,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,RING_INTERMEDIATE
ESRTIMEPARAM/TGRID_S,0.002,s,BEAMOUT_RAMP
ESRTIMEPARAM/TGRID_S,0.002,s,BEAMOUT_POST
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INJECTION
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_BUNCHING
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_RAMP
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_RAMP
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,RING_INTERMEDIATE
ESRTIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RAMP
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_INJECTION
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_BUNCHING
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_REBUNCHING
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,---,s,RING_RAMP
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,---,s,RING_RAMP
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TMEASURE_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,BEAMOUT_PRE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STATIC
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_INJECTION
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_BUNCHING
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_REBUNCHING
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RAMP
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.128, 0.128],s,RING_RAMP
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,RING_RF_MANIPULATION
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.05, 0.05],s,RING_INTERMEDIATE
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,BEAMOUT_RAMP
ESRTIMEPARAM/TROUND_S,[0.032, 0.032],s,BEAMOUT_POST
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,BEAMOUT_PRE
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STATIC
ESRTIMEPARAM/T_BP_LENGTH_S,3.6,s,RING_INJECTION
ESRTIMEPARAM/T_BP_LENGTH_S,0.016,s,RING_BUNCHING
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,0.1,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.1,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,0.1,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.016,s,RING_REBUNCHING
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/T_BP_LENGTH_S,25.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,0.064,s,RING_RAMP
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,0.1,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/T_BP_LENGTH_S,0.1,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.1,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,0.064,s,RING_RAMP
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,30.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,20.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,8.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/T_BP_LENGTH_S,0.2,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,10.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,BEAMOUT_RAMP
ESRTIMEPARAM/T_BP_LENGTH_S,0.196,s,BEAMOUT_POST
ESRTIMEPARAM/T_WAIT_S,0.032,s,BEAMOUT_PRE
ESRTIMEPARAM/T_WAIT_S,0.0,s,STATIC
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INJECTION
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_BUNCHING
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_REBUNCHING
ESRTIMEPARAM/T_WAIT_S,0.016,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/T_WAIT_S,0.0,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/T_WAIT_S,0.0,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.064,s,RING_RAMP
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.016,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/T_WAIT_S,0.0,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/T_WAIT_S,0.0,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.064,s,RING_RAMP
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_RF_MANIPULATION
ESRTIMEPARAM/T_WAIT_S,0.016,s,STORAGE_MANIP_PERFORM
ESRTIMEPARAM/T_WAIT_S,0.0,s,STORAGE_MANIP_WAIT
ESRTIMEPARAM/T_WAIT_S,0.0,s,STORAGE_MANIP_RESTART_FGS
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.0,s,RING_INTERMEDIATE
ESRTIMEPARAM/T_WAIT_S,0.032,s,BEAMOUT_RAMP
ESRTIMEPARAM/T_WAIT_S,0.032,s,BEAMOUT_POST
ESRTIMEPARAM/WITH_CONSTANT_CURRENT_RAMPING_B,---,,BEAMOUT_PRE
ESRTIMEPARAM/WITH_CONSTANT_CURRENT_RAMPING_B,---,,RING_RAMP
ESRTIMEPARAM/WITH_CONSTANT_CURRENT_RAMPING_B,---,,RING_RAMP
ESRTIMEPARAM/WITH_CONSTANT_CURRENT_RAMPING_B,---,,BEAMOUT_RAMP
ESRTIMEPARAM/WITH_CONSTANT_CURRENT_RAMPING_B,---,,BEAMOUT_POST
LOGICAL.GECEMO1P/I,206.9,A,ECOOLER_COOLING
LOGICAL.GECEMO1P/I,206.9,A,ECOOLER_COOLING
LOGICAL.GECEMO1P/I,206.9,A,ECOOLER_COOLING
LOGICAL.GECEMO1P/I,206.9,A,ECOOLER_COOLING
LOGICAL.GECEMO1P/I,206.9,A,ECOOLER_COOLING
LOGICAL.GECEMO1P/I,206.9,A,ECOOLER_COOLING
LOGICAL.GECEMO1P/I,206.9,A,ECOOLER_COOLING
LOGICAL.GECEKX1/I,430.0,A,ECOOLER_COOLING
LOGICAL.GECEKX1/I,430.0,A,ECOOLER_COOLING
LOGICAL.GECEKX1/I,430.0,A,ECOOLER_COOLING
LOGICAL.GECEKX1/I,430.0,A,ECOOLER_COOLING
LOGICAL.GECEKX1/I,430.0,A,ECOOLER_COOLING
LOGICAL.GECEKX1/I,430.0,A,ECOOLER_COOLING
LOGICAL.GECEKX1/I,430.0,A,ECOOLER_COOLING
LOGICAL.GECEKY1/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY1/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY1/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY1/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY1/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY1/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY1/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEMO3C/I,277.5,A,ECOOLER_COOLING
LOGICAL.GECEMO3C/I,277.5,A,ECOOLER_COOLING
LOGICAL.GECEMO3C/I,277.5,A,ECOOLER_COOLING
LOGICAL.GECEMO3C/I,277.5,A,ECOOLER_COOLING
LOGICAL.GECEMO3C/I,277.5,A,ECOOLER_COOLING
LOGICAL.GECEMO3C/I,277.5,A,ECOOLER_COOLING
LOGICAL.GECEMO3C/I,277.5,A,ECOOLER_COOLING
LOGICAL.GECEKT1G/I,138.7,A,ECOOLER_COOLING
LOGICAL.GECEKT1G/I,138.7,A,ECOOLER_COOLING
LOGICAL.GECEKT1G/I,138.7,A,ECOOLER_COOLING
LOGICAL.GECEKT1G/I,138.7,A,ECOOLER_COOLING
LOGICAL.GECEKT1G/I,138.7,A,ECOOLER_COOLING
LOGICAL.GECEKT1G/I,138.7,A,ECOOLER_COOLING
LOGICAL.GECEKT1G/I,138.7,A,ECOOLER_COOLING
LOGICAL.GECEMO4K/SOLENOID_I,534.54,A,ECOOLER_COOLING
LOGICAL.GECEMO4K/SOLENOID_I,534.54,A,ECOOLER_COOLING
LOGICAL.GECEMO4K/SOLENOID_I,534.54,A,ECOOLER_COOLING
LOGICAL.GECEMO4K/SOLENOID_I,534.54,A,ECOOLER_COOLING
LOGICAL.GECEMO4K/SOLENOID_I,534.54,A,ECOOLER_COOLING
LOGICAL.GECEMO4K/SOLENOID_I,534.54,A,ECOOLER_COOLING
LOGICAL.GECEMO4K/SOLENOID_I,534.54,A,ECOOLER_COOLING
LOGICAL.GECEKT3C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT3C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT3C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT3C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT3C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT3C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT3C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT4C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT4C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT4C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT4C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT4C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT4C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT4C/I,95.0,A,ECOOLER_COOLING
LOGICAL.GECEKT5K/I,150.0,A,ECOOLER_COOLING
LOGICAL.GECEKT5K/I,150.0,A,ECOOLER_COOLING
LOGICAL.GECEKT5K/I,150.0,A,ECOOLER_COOLING
LOGICAL.GECEKT5K/I,150.0,A,ECOOLER_COOLING
LOGICAL.GECEKT5K/I,150.0,A,ECOOLER_COOLING
LOGICAL.GECEKT5K/I,150.0,A,ECOOLER_COOLING
LOGICAL.GECEKT5K/I,150.0,A,ECOOLER_COOLING
LOGICAL.GECEKY6G/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY6G/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY6G/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY6G/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY6G/TOROID_I,87.2394,A,ECOOLER_COOLING
LOGICAL.GECEKY6G/TOROID_I,87.2394,A,ECOOLER_COOLING
LOGICAL.GECEKY6G/TOROID_I,87.2394,A,ECOOLER_COOLING
LOGICAL.GECEKY7K/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY7K/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY7K/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY7K/TOROID_I,132.7773,A,ECOOLER_COOLING
LOGICAL.GECEKY7K/TOROID_I,87.2394,A,ECOOLER_COOLING
LOGICAL.GECEKY7K/TOROID_I,87.2394,A,ECOOLER_COOLING
LOGICAL.GECEKY7K/TOROID_I,87.2394,A,ECOOLER_COOLING
LOGICAL.GECEKY8G/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY8G/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY8G/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY8G/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY8G/TOROID_I,57.0412,A,ECOOLER_COOLING
LOGICAL.GECEKY8G/TOROID_I,57.0412,A,ECOOLER_COOLING
LOGICAL.GECEKY8G/TOROID_I,57.0412,A,ECOOLER_COOLING
LOGICAL.GECEKY9K/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY9K/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY9K/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY9K/TOROID_I,86.8159,A,ECOOLER_COOLING
LOGICAL.GECEKY9K/TOROID_I,57.0412,A,ECOOLER_COOLING
LOGICAL.GECEKY9K/TOROID_I,57.0412,A,ECOOLER_COOLING
LOGICAL.GECEKY9K/TOROID_I,57.0412,A,ECOOLER_COOLING
LOGICAL.GECEKX3G/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX3G/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX3G/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX3G/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX3G/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX3G/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX3G/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY3G/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY3G/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY3G/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY3G/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY3G/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY3G/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY3G/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKX4K/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX4K/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX4K/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX4K/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX4K/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX4K/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKX4K/I,0.0,A,ECOOLER_COOLING
LOGICAL.GECEKY4K/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY4K/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY4K/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY4K/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY4K/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY4K/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKY4K/I,-50.0,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/ECORR_ANG_I,0.0727,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/ECORR_ANG_I,0.0727,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/ECORR_ANG_I,0.0727,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/ECORR_ANG_I,0.1455,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/ECORR_ANG_I,0.1455,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/ECORR_ANG_I,0.1455,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/ECORR_ANG_I,0.1455,A,ECOOLER_COOLING
LOGICAL.GECEKX5C/STEERER_ANG_S,1.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKX5C/STEERER_ANG_S,1.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKX5C/STEERER_ANG_S,1.0E-4,rad,STORAGE_MANIP_WAIT
LOGICAL.GECEKX5C/STEERER_ANG_S,1.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKX5C/STEERER_ANG_S,2.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKX5C/STEERER_ANG_S,2.0E-4,rad,STORAGE_MANIP_WAIT
LOGICAL.GECEKX5C/STEERER_ANG_S,2.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKX5C/STEERER_ANG_S,2.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKX5C/STEERER_ANG_S,2.0E-4,rad,STORAGE_MANIP_WAIT
LOGICAL.GECEKX5C/STEERER_ANG_S,2.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKY5C/ECORR_ANG_I,0.2182,A,ECOOLER_COOLING
LOGICAL.GECEKY5C/ECORR_ANG_I,0.2182,A,ECOOLER_COOLING
LOGICAL.GECEKY5C/ECORR_ANG_I,0.2182,A,ECOOLER_COOLING
LOGICAL.GECEKY5C/ECORR_ANG_I,0.2909,A,ECOOLER_COOLING
LOGICAL.GECEKY5C/ECORR_ANG_I,0.2909,A,ECOOLER_COOLING
LOGICAL.GECEKY5C/ECORR_ANG_I,0.2909,A,ECOOLER_COOLING
LOGICAL.GECEKY5C/ECORR_ANG_I,0.2909,A,ECOOLER_COOLING
LOGICAL.GECEKY5C/STEERER_ANG_S,3.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKY5C/STEERER_ANG_S,3.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKY5C/STEERER_ANG_S,3.0E-4,rad,STORAGE_MANIP_WAIT
LOGICAL.GECEKY5C/STEERER_ANG_S,3.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKY5C/STEERER_ANG_S,4.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKY5C/STEERER_ANG_S,4.0E-4,rad,STORAGE_MANIP_WAIT
LOGICAL.GECEKY5C/STEERER_ANG_S,4.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKY5C/STEERER_ANG_S,4.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKY5C/STEERER_ANG_S,4.0E-4,rad,STORAGE_MANIP_WAIT
LOGICAL.GECEKY5C/STEERER_ANG_S,4.0E-4,rad,ECOOLER_COOLING
LOGICAL.GECEKD1D/I,0.98,A,ECOOLER_COOLING
LOGICAL.GECEKD1D/I,0.98,A,ECOOLER_COOLING
LOGICAL.GECEKD1D/I,0.98,A,ECOOLER_COOLING
LOGICAL.GECEKD1D/I,0.98,A,ECOOLER_COOLING
LOGICAL.GECEKD1D/I,0.98,A,ECOOLER_COOLING
LOGICAL.GECEKD1D/I,0.98,A,ECOOLER_COOLING
LOGICAL.GECEKD1D/I,0.98,A,ECOOLER_COOLING
LOGICAL.GECEKD2D/I,1.85,A,ECOOLER_COOLING
LOGICAL.GECEKD2D/I,1.85,A,ECOOLER_COOLING
LOGICAL.GECEKD2D/I,1.85,A,ECOOLER_COOLING
LOGICAL.GECEKD2D/I,1.85,A,ECOOLER_COOLING
LOGICAL.GECEKD2D/I,1.85,A,ECOOLER_COOLING
LOGICAL.GECEKD2D/I,1.85,A,ECOOLER_COOLING
LOGICAL.GECEKD2D/I,1.85,A,ECOOLER_COOLING
LOGICAL.GECEMT3G/I,301.9,A,ECOOLER_COOLING
LOGICAL.GECEMT3G/I,301.9,A,ECOOLER_COOLING
LOGICAL.GECEMT3G/I,301.9,A,ECOOLER_COOLING
LOGICAL.GECEMT3G/I,301.9,A,ECOOLER_COOLING
LOGICAL.GECEMT3G/I,301.9,A,ECOOLER_COOLING
LOGICAL.GECEMT3G/I,301.9,A,ECOOLER_COOLING
LOGICAL.GECEMT3G/I,301.9,A,ECOOLER_COOLING
LOGICAL.GECEBG1E/DELUACC_S,20.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1E/DELUACC_S,20.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1E/DELUACC_S,20.0,V,STORAGE_MANIP_WAIT
LOGICAL.GECEBG1E/DELUACC_S,20.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1E/DELUACC_S,20.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1E/DELUACC_S,20.0,V,STORAGE_MANIP_WAIT
LOGICAL.GECEBG1E/DELUACC_S,20.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1E/DELUACC_S,160.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1E/DELUACC_S,160.0,V,STORAGE_MANIP_WAIT
LOGICAL.GECEBG1E/DELUACC_S,160.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1E/UACC_START_END_S,[219482.1738, 219482.1738],V,ECOOLER_COOLING
LOGICAL.GECEBG1E/UACC_START_END_S,[219482.1738, 219482.1738],V,ECOOLER_COOLING
LOGICAL.GECEBG1E/UACC_START_END_S,[219482.1738, 219482.1738],V,ECOOLER_COOLING
LOGICAL.GECEBG1E/UACC_START_END_S,[219482.1738, 219482.1738],V,ECOOLER_COOLING
LOGICAL.GECEBG1E/UACC_START_END_S,[104467.3947, 104467.3947],V,ECOOLER_COOLING
LOGICAL.GECEBG1E/UACC_START_END_S,[104569.1547, 104569.1547],V,ECOOLER_COOLING
LOGICAL.GECEBG1E/UACC_START_END_S,[104569.1547, 104569.1547],V,ECOOLER_COOLING
LOGICAL.GECEBG1E/U_COOLER,219482.1738,V,STORAGE_MANIP_WAIT
LOGICAL.GECEBG1E/U_COOLER,219482.1738,V,STORAGE_MANIP_WAIT
LOGICAL.GECEBG1E/U_COOLER,104569.1547,V,STORAGE_MANIP_WAIT
LOGICAL.GECEBG2T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG2T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG2T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG2T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG2T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG2T/U_COOLER,999.0758,V,ECOOLER_COOLING
LOGICAL.GECEBG2T/U_COOLER,999.0758,V,ECOOLER_COOLING
LOGICAL.GECEBG5T/U_GUN_S,2000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG5T/U_GUN_S,2000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG5T/U_GUN_S,2000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG5T/U_GUN_S,2000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG5T/U_GUN_S,2000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG5T/U_GUN_S,2000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG5T/U_GUN_S,2000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG6T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG6T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG6T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG6T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG6T/U_COOLER,2586.9673,V,ECOOLER_COOLING
LOGICAL.GECEBG6T/U_COOLER,999.0758,V,ECOOLER_COOLING
LOGICAL.GECEBG6T/U_COOLER,999.0758,V,ECOOLER_COOLING
LOGICAL.GECEBG7T/U_COOLER,250.0,V,ECOOLER_COOLING
LOGICAL.GECEBG7T/U_COOLER,250.0,V,ECOOLER_COOLING
LOGICAL.GECEBG7T/U_COOLER,250.0,V,ECOOLER_COOLING
LOGICAL.GECEBG7T/U_COOLER,250.0,V,ECOOLER_COOLING
LOGICAL.GECEBG7T/U_COOLER,250.0,V,ECOOLER_COOLING
LOGICAL.GECEBG7T/U_COOLER,212.0,V,ECOOLER_COOLING
LOGICAL.GECEBG7T/U_COOLER,212.0,V,ECOOLER_COOLING
LOGICAL.GECEBG8T/U_S,5000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG8T/U_S,5000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG8T/U_S,5000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG8T/U_S,5000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG8T/U_S,5000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG8T/U_S,5000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG8T/U_S,5000.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG1D/U_COOLER,233.2,V,ECOOLER_COOLING
LOGICAL.GECEBG1D/U_COOLER,233.2,V,ECOOLER_COOLING
LOGICAL.GECEBG2D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG2D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG2D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG2D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG2D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG2D/U_COOLER,233.2,V,ECOOLER_COOLING
LOGICAL.GECEBG2D/U_COOLER,233.2,V,ECOOLER_COOLING
LOGICAL.GECEBG3D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG3D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG3D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG3D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG3D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG3D/U_COOLER,233.2,V,ECOOLER_COOLING
LOGICAL.GECEBG3D/U_COOLER,233.2,V,ECOOLER_COOLING
LOGICAL.GECEBG4D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG4D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG4D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG4D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG4D/U_COOLER,275.0,V,ECOOLER_COOLING
LOGICAL.GECEBG4D/U_COOLER,233.2,V,ECOOLER_COOLING
LOGICAL.GECEBG4D/U_COOLER,233.2,V,ECOOLER_COOLING
ESR_COOLER_EBEAM/BT,0.1,T,ECOOLER_COOLING
ESR_COOLER_EBEAM/BT,0.1,T,ECOOLER_COOLING
ESR_COOLER_EBEAM/BT,0.1,T,ECOOLER_COOLING
ESR_COOLER_EBEAM/BT,0.1,T,ECOOLER_COOLING
ESR_COOLER_EBEAM/BT,0.1,T,ECOOLER_COOLING
ESR_COOLER_EBEAM/BT,0.1,T,ECOOLER_COOLING
ESR_COOLER_EBEAM/BT,0.1,T,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STORAGE_MANIP_PERFORM
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STORAGE_MANIP_WAIT
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,STORAGE_MANIP_RESTART_FGS
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,BEAMOUT_RAMP
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STORAGE_MANIP_PERFORM
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STORAGE_MANIP_WAIT
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STORAGE_MANIP_RESTART_FGS
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,BEAMOUT_RAMP
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,BEAMOUT_RAMP
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STORAGE_MANIP_PERFORM
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STORAGE_MANIP_WAIT
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STORAGE_MANIP_RESTART_FGS
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,STATIC
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/ECOOLER_ACTIVE_B,false,,BEAMOUT_RAMP
ESR_COOLER_EBEAM/GAMME,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME,1.2043,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME,1.2043,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME,1.2043,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME_USER,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME_USER,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME_USER,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME_USER,1.4294,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME_USER,1.2043,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME_USER,1.2043,,ECOOLER_COOLING
ESR_COOLER_EBEAM/GAMME_USER,1.2043,,ECOOLER_COOLING
ESR_COOLER_EBEAM/IE_S,0.25,A,ECOOLER_COOLING
ESR_COOLER_EBEAM/IE_S,0.25,A,ECOOLER_COOLING
ESR_COOLER_EBEAM/IE_S,0.25,A,STORAGE_MANIP_WAIT
ESR_COOLER_EBEAM/IE_S,0.25,A,ECOOLER_COOLING
ESR_COOLER_EBEAM/IE_S,0.25,A,ECOOLER_COOLING
ESR_COOLER_EBEAM/IE_S,0.25,A,STORAGE_MANIP_WAIT
ESR_COOLER_EBEAM/IE_S,0.25,A,ECOOLER_COOLING
ESR_COOLER_EBEAM/IE_S,0.06,A,ECOOLER_COOLING
ESR_COOLER_EBEAM/IE_S,0.06,A,STORAGE_MANIP_WAIT
ESR_COOLER_EBEAM/IE_S,0.06,A,ECOOLER_COOLING
ESR_COOLER_EBEAM/OVERWRITE_GAMME_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/OVERWRITE_GAMME_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/OVERWRITE_GAMME_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/OVERWRITE_GAMME_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/OVERWRITE_GAMME_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/OVERWRITE_GAMME_B,true,,ECOOLER_COOLING
ESR_COOLER_EBEAM/OVERWRITE_GAMME_B,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RAMP
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RAMP
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RAMP
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,ECOOLER_COOLING
ESR_COOLER_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RAMP
LOGICAL.ESR_COOLER_EAUX/BETAE_S,0.7145,,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/BETAE_S,0.7145,,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/BETAE_S,0.7145,,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/BETAE_S,0.7145,,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/BETAE_S,0.5572,,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/BETAE_S,0.5572,,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/BETAE_S,0.5572,,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/NERF_S,2.5211384723411733E12,1/m³,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/NERF_S,2.5211384723411733E12,1/m³,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/NERF_S,2.5211384723411733E12,1/m³,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/NERF_S,2.5211384723411733E12,1/m³,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/NERF_S,3.837140484120625E12,1/m³,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/NERF_S,9.209137161889498E11,1/m³,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/NERF_S,9.209137161889498E11,1/m³,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/UACC_S,219422.9353,V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/UACC_S,219422.9353,V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/UACC_S,219422.9353,V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/UACC_S,219422.9353,V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/UACC_S,104397.0789,V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/UACC_S,104397.0789,V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/UACC_S,104397.0789,V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/USC_START_END_S,[39.2385, 39.2385],V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/USC_START_END_S,[39.2385, 39.2385],V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/USC_START_END_S,[39.2385, 39.2385],V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/USC_START_END_S,[39.2385, 39.2385],V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/USC_START_END_S,[50.3158, 50.3158],V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/USC_START_END_S,[12.0758, 12.0758],V,ECOOLER_COOLING
LOGICAL.ESR_COOLER_EAUX/USC_START_END_S,[12.0758, 12.0758],V,ECOOLER_COOLING

1. UNILAC running again, so we resumed the beam tuning wherre we stopped yesterday at 14:00

2. Goals: Reduce intensity and lifetime of "antibunch" contamination while maximising intensity for main bunch/on PD
   Adjusted bucketsize, el. cooler current, cooling times,..
   Managed to get bunch width to 6-8 bins and get 10k counts in 15 mins with only 20 injections
   but el. cooling still takes long and sometimes bunch phase jumps by 90° in "measurement manipulation"

4. Checked scan range again and found small discrepancy

3. Decided to switch el. cooler voltage (1st cooling) by +100V,
   ion beam position in el. cooler should not be afected by this too much, at the scrapers at which the dispersion is maximal it shifted the beam by 5mm

new revolution frequency: 1.54315 GHz
new electron cooler voltage: 104506 V(+95 V; slightly adjusted to match revolution frequency
"antibunch" vanishes within first 10s
bunch on PD wider, but might be missmatch of HF and cooler voltage

We have switched off all 3 PMTs  !

We have made two foam rings (outer diameter ca. 70 mm with a thickness of 10 mm each and placed them successively underneath PMT north.

ring 1: ID = 55 mm
ring 2: ID = 47 mm

Without rings we had measured ca. 20 counts per channel in a time of about 7 minutes. (1st picture below)

With ring 1 we have measured ca. 18 counts per channel in 7 mins.

with ring 1 and ring 2 we have measured ca. 15 counts per channel in 7 mins. (2nd picture below)

It is clear that the rate of PMT north decreases with increasing distance from the beampipe.

At this point it is not yet clear to us if the experiment will benefit from the 2 rings.

If the rings should be implemented, we propose to have one proper ring (20 mm high) made by the mechanical workshop.

Carsten and Kristian changed (18:00) the thresholds of PMT north and PMT middle in the ESR cave.
See picture below. The effect is negligible.


Carsten will now (18:05) change the channel of the pre-amp of PMT north.

We noted that the dark countrate of PMT north is about 20x higher than that of PMT middle.

We went into the ESR cave to look for stray light.
We decided to put a black cloth over all the PMTs.
Also we made the tubes of the N2 airflow to the PMTs black (tape around).
This did not make a significant change.

We exchanged PMT north (same type 9423B) to see if that made a difference.
It did not really change either.

PMT north = 2650 V
PMT middle = 2700 V

The first picture below shows the dark rates for these two voltages.

At about 17:00 we changed the voltage of PMT north to 2700 V.
This did not change anything.


Carsten swapped the cables of PMT north and PMt middle (inside ESR, before the amps) at 17:14.
The second picture below shows the result of that.
Now black and red are exchanged.


Carsten swapped the cables back again (17:20).
Carsten and Kristian will look at the PMT signals in the ESR cave.

Test scan to see whether laser spot is moving while scanning

Aborted accumulation because SIS stopped. 12.9k counts
saved as /data.local2/2025_229Th/2025_229ThDAQ1_0103.lmd using DAC1 only

We filmed it and will try to attach it later
1. After resetting to high wavelength, the MRC stabilization takes a bit longer to adjust, beam not centered for the first 1-2s
2. During the scan the beam does not seem to jump around more than usual, but there might be a minimal wavelength dependent drift (maybe 1/3 of laser beam diameter towards bottom right over entire scan range)

With reference to entry 37 Laser timing:

- at last 30 injections accumulation: 10k counts on particle detector (accumulated during manipulation until it saturates, e.g. no more Th in ESR)
- at first 70 injections accumulation: 7.6k counts
- at second 70 injections accumulation: 2.8k counts

did another 2 30 injections accumulations to confirm lower yield:
- at first 30 injections accumulation: 3.7k counts
  SIS intensities look fine, around 1.2e9
- at second 30 injections accumulation:  6.9k counts
  saved to /data.local2/2025_229Th/2025_229ThDAQ1_0101.lmd with DAQ1
  SIS intensities look fine, around 1.2e9, only users during injection
  "late" contaminants on PD seem to quickly disappear after start of modulation 3
  (attachment 1: full timing spectrum, attachment 2: timing spectrum at the end of the modulation)
- at second 60 injections accumulation:  0 counts, maybe scrapers overshot,did another one, still not accumulating

     -------------------   Some issue on accelerator side   -------------------
        FSR people had to go into cave, that's why we were the only users,
        but since nothing got into ESR
        Connection to scrapers was lost, on call service had to do a reset

- at second 60 injections accumulation:  11.9k counts
  saved to /data.local2/2025_229Th/2025_229ThDAQ1_0102.lmd with DAQ1
  again observed that the late contaminant om the particle detector (see attachment 3) is more prominent in at the beginning.
  This also manifests in an early steep fall off on the counts/s, see attachment 4

We roughly adjusted the timing based on attachment 1, for ions to be in center of electron cooler (east arc), corrected for PMTs being 2.5m closer to the north on the west arc
then did a new 30 injection accumulation (10.8k counts on particle detector) and readjusted the timing to fine tune this
(attachment 2, first settings right peaks, adjusted towards left)

Then we did a 60 injection accumulation (only 7.6k counts?) to check the settings and shift the timing by half a revolution (324 ns = 98 bins)
(attachment 3, data saved in /data.local2/2025_229Th/2025_229ThDAQ1_0099.lmd with DAQ1).

Checked these settings and particle counts with another injection (2.8k counts)
(attachment 4, data saved in /data.local2/2025_229Th/2025_229ThDAQ1_0100.lmd with DAQ1)


Estimated bunch width: 20bins = 67ns;corresponds to 20/200 of 1 evolution, so about 12m
                                     assuming v+0.5c0: 11m

• right side: the thorium beam.

• left side: a satellite peak (isobar).


• 3 Loops

• 501 Steps

• 15 Shots / Step

• From 550.4 nm to 547.9 nm. In total 2.5 nm @ 0.005 nm


[1] 242.27986 MHz
[2] 242.82623 MHz + 27.5 kHz
[3] 242.853 MHz + 54.375 kHz 229Th
[4] 242.878 MHz + 79.375 kHz
[5] 242.936 MHz + 137.5 kHz
[6] 242.959 MHz + 160 kHz
[7] 242.982 MHz + 183.75 kHz

[1] 243.6925 MHz
[2] 243.72213 MHz + 29.6 kHz
[3] 243.750 MHz + 57.375 kHz 229Th --- Reference on Schottky scope
[4] 243.7768 MHz + 84. kHz
[5] 243.8376 MHz + 145 kHz
[6] 243.863 MHz + 170.6 kHz
[7] 243.687 MHz + 194.625 kHz

I have prepared new (fresh) dye solutions of Fluorescein 27: 2 charges. They are in the Safety Cabinet (Sicherheitsschrank) in the ESR Laser lab

We believe to have identified the 237U92+ and the 229Th89+ peaks.

Using the Schottky resonator at about 244 MHz and taking the 123rd harmonic:
The Schottky peak of 237U92+ should be at 242.7975 MHz and the one of 229Th89+ at 242.8494 MHz.
The peaks should be ~52 kHz apart.

We have used:
gamma_t	= 2.355
alpha_p = 0.18

For PID with rionid we used:
- LISE file from last year (attached.
- .npz file from 410 RSA (attached).

Apparentlty did not work yesterday evening (no signal), but looks fine now (see attachment)

Pulses on photodiodes in entry 20

1. seem wide, so we also looked at qswitch signal; also seemes wide.
2. Have a tail

1.:

We investigated this and came to the conclusion, that the CFD is the issue:
- On an oscilloscope, when looking at both HF signal (CFD input) and CFD output, there is a 2ns jitter.
- The same jitter is visible when looking at the CFD output when triggering on a freq. generator signal with same frequency and amplitude as HF signal (1.54263 MHz; 1V peak to peak).
- There is not significant jitter when comparing the CFD output and the qswitch signal

We tried differents CFD (also a leading edge CFD / different thresholds), but this did not significantly improve what we saw on the oscilloscope.
Applying a 10MHz filter to the HF signal only made the jitter worse.
There might be an option to get a logic (NIM) signal from ESR instead of the sin-signal
Alternatively, one could think about using a PLL.
Note: the 2ns might also be limited by the trigger of the oscilloscope. We saw that if the trigger of the oscilloscope is not on the steepest part of the HF signal, the jitter "gets worse".

2.:

We saw on the qswtich signal, that there are instances, when  the q-switch signal is too early;
Ww will try to find out which NIM module between the CFD and the final qswitch signal causes this
Preliminary: It's coincidance crate

UV power was not stable but dropping from ~18 mW to 13 mW after opening COBRA shutters.
New calibration of frequency conversion unit:

Wavelength/nm       Position/Steps
554,0001            383029
553,0000            386604
552,0001            390229
551,0000            393954
550,0001            397679
549,0001            401404
548,0001            405104
547,0001            408829

now stable at ~19-20 mJ depending on wavelength

Table of dataset: Attachement 1
Plot of dataset: Attachement 2

We recognized that the output power of the pump laser was instable when externally triggered with 200kHz (stand-bye frequency of ESR). Therefore, we changed the coarse timing offset of the pockels cell trigger compared to the flash lamp pulse from 215µs to 219.9µs.
Thereby, the output power increased from ~600mJ to 620mJ, and the PTP stability improved from 15% to 10%. The RMS stability improved from 2% to 1.2 %. With these settings we had UV pulse energies of 20mJ.

• ECEDS1VU: Verriegelt mit ECEDS1HA. Der Antrieb kann nur fahren
  wenn der Antrieb ECEDS1HA in Position -4,0 steht.


• ECEDS1HA: Verriegelt mit ECEDS1VU. Der Antrieb kann nur fahren
  wenn der Antrieb ECEDS1VU in Stellung EI steht.


• ECEDS2VU: Verriegelt mit ECEDS2HA. Der Antrieb kann nur fahren
  wenn der Antrieb ECEDS2HA in Position 0,0 steht.


• ECEDS2HA: Verriegelt mit ECEDS2VU. Der Antrieb kann nur fahren
  wenn der Antrieb ECEDS2VU in Stellung EI steht.


The gate generator of the Q-switch signal for the Vuprom TDC was set to 10ms.

The metadata provided by Medusa (Labview channels in former times) are now labelled correctly in Go4.
Most important data are "Cobra Set WL", "WS7 Meas WL", "PTB U scal", "Ohmlabs U scal", which correspond to the set wavelength, measured wavelength, voltage measured at the PTB divider, and voltage measured at the Ohmlabs divider.
Other channels are mostly for debugging purposes.

1. Open additional views, options are "Display" (figure of recent values), "MBS Messenger" (connection status with MBS, lower part of Attachment 2), "Devices View" (most recent values of different devices, right part of Attachment 2)

2. Make sure that "Make Data Available to MBS" is selected

3. Definition of laser scan Parameters. The laser will perform an automated scan between the selected wavelengths. It's possible to define an increment or a number of laser steps as scan parameter. After the laser has received the specified number of rising edges on Trigger port #1 (Do not change the port number, since this corresponds to the Hardware setting!) the laser advances to the next frequency until the number of steps and scan repetitions is completed. There is an option to start the laser scan automatically, when a trigger was received on port #3 (The cabling is done. However, the pulse generation must be provided from SCU sddsc221 channel IO1 of timing receiver tr1 whenever needed).

4. The button can be used to start and stop a scan. In some cases there might occur an USB communication error with the laser, which can also be reset by this button.

5. IMPORTANT NOTE: Make sure that the FCU is enabled, since otherwise the BBO of the FCU does not follow the wavelength of the laser, which results in NO UV output power.

6. After "Make Data Available to MBS" option (see 2.) has been selected, Medusa is awaiting the MBS client to connect.

7. View of most recent parameter settings.


1. Start medusa as described above

2. Connect to "r4l-41":
   atplaser@lxg1297:~$ ssh atplaser@r4l-41

3. Change to the directory of the Th-MBS version:
   R4L-41 > cd mbsrun/E0052/DAQ1

4. Make a reset (optional):
   R4L-41 > resl

5. Start mbs:
   R4L-41 > mbs

6. Once you are in the mbs environment start the acquisition:
   mbs > @startup

7. Connect to the file server:
   mbs > @connectdisk

8. Start acquisition:
   mbs > sta ac
   With this command, the connection to the Medusa server should be established. This can be verified by the line
   -R4L-41 :read_meb :connected succesfully to LabView Server.
   of the MBS output, and in the MBS Messenger View of Medusa stating
   Connected! Established connection to ...


9. Open file:
   mbs > @openfile

10. Press Run-button in the Go4 analysis (must be started beforehand)

11. Start laser scan in medusa

12. Press Stop-button in the Go4 analysis

13. Close file:
    mbs > @closefile


On the NTCAP the directory is changed to
Q:/E0052

The data of DAQ1 are stored in the following directory and with the following filenames

open file /data.local2/2025_229Th/2025_229ThDAQ1_ -auto -rfio
(from @openfile)

The usual @connectdisk, @openfile @closefile are adapted and can be used.

The WDBook RAID0 disk is attached for backup of the data

/media/atplaser/WDBook2/2025E0052daq1
